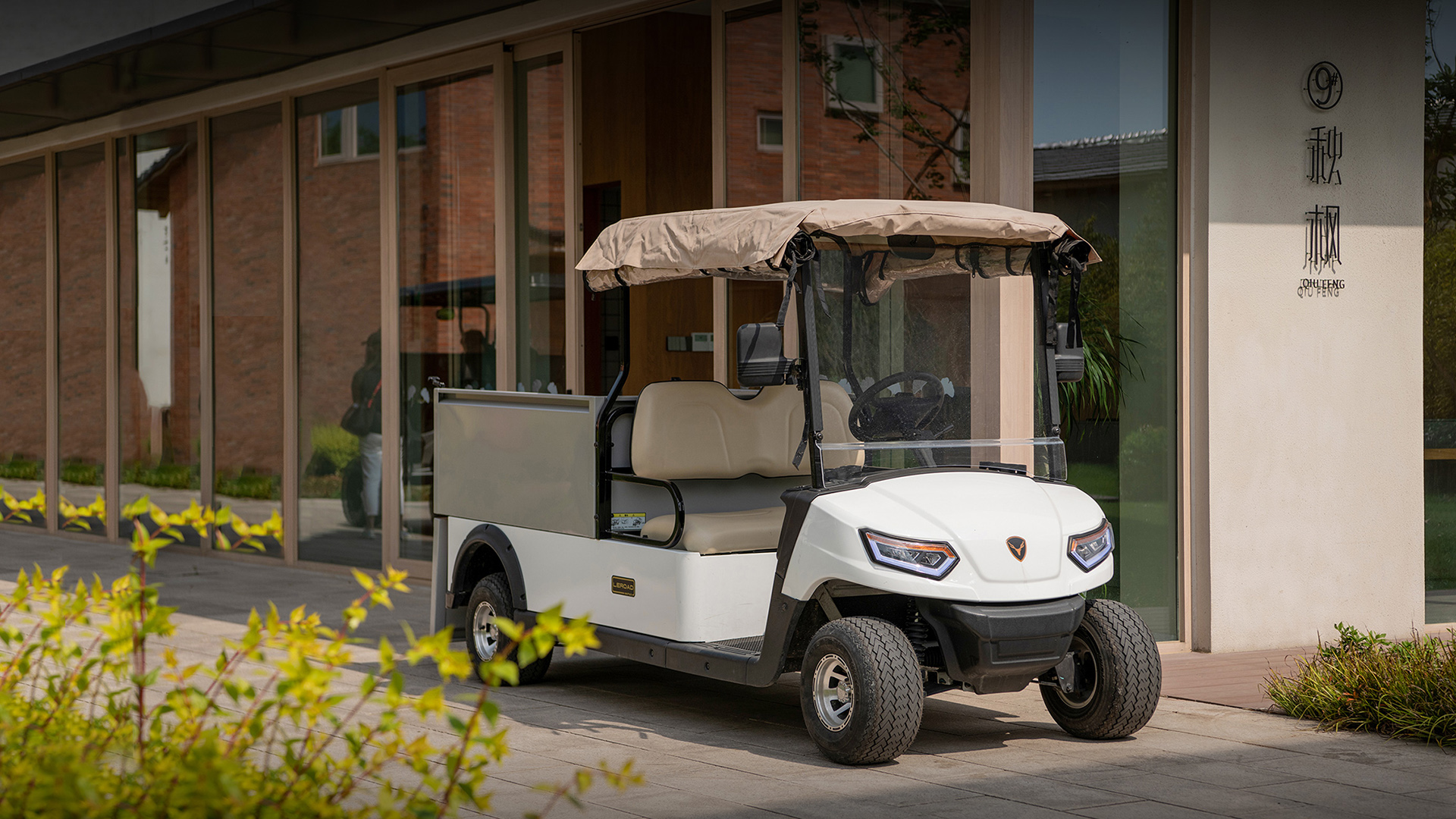

Leroad L2 Utility Cart

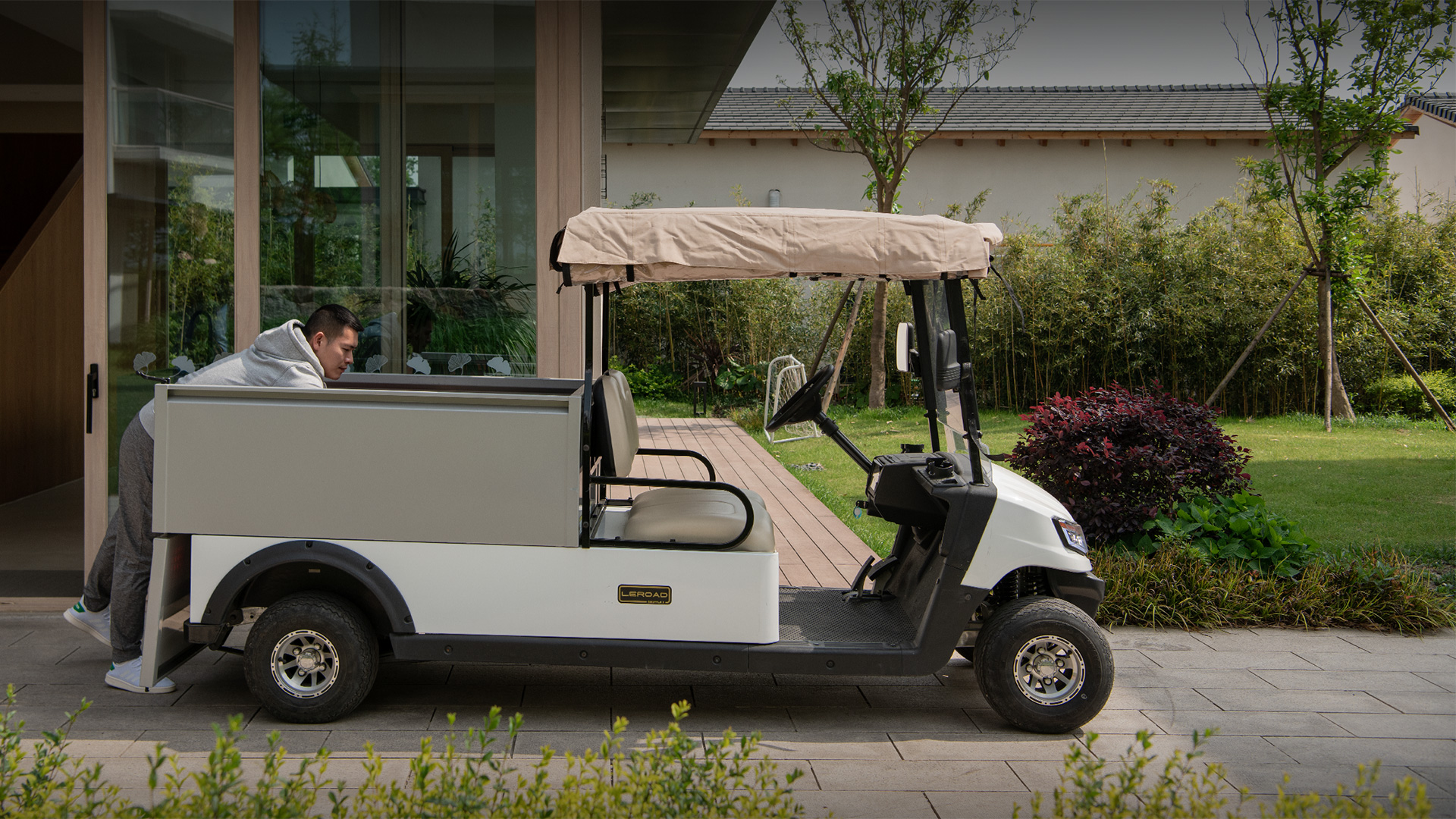

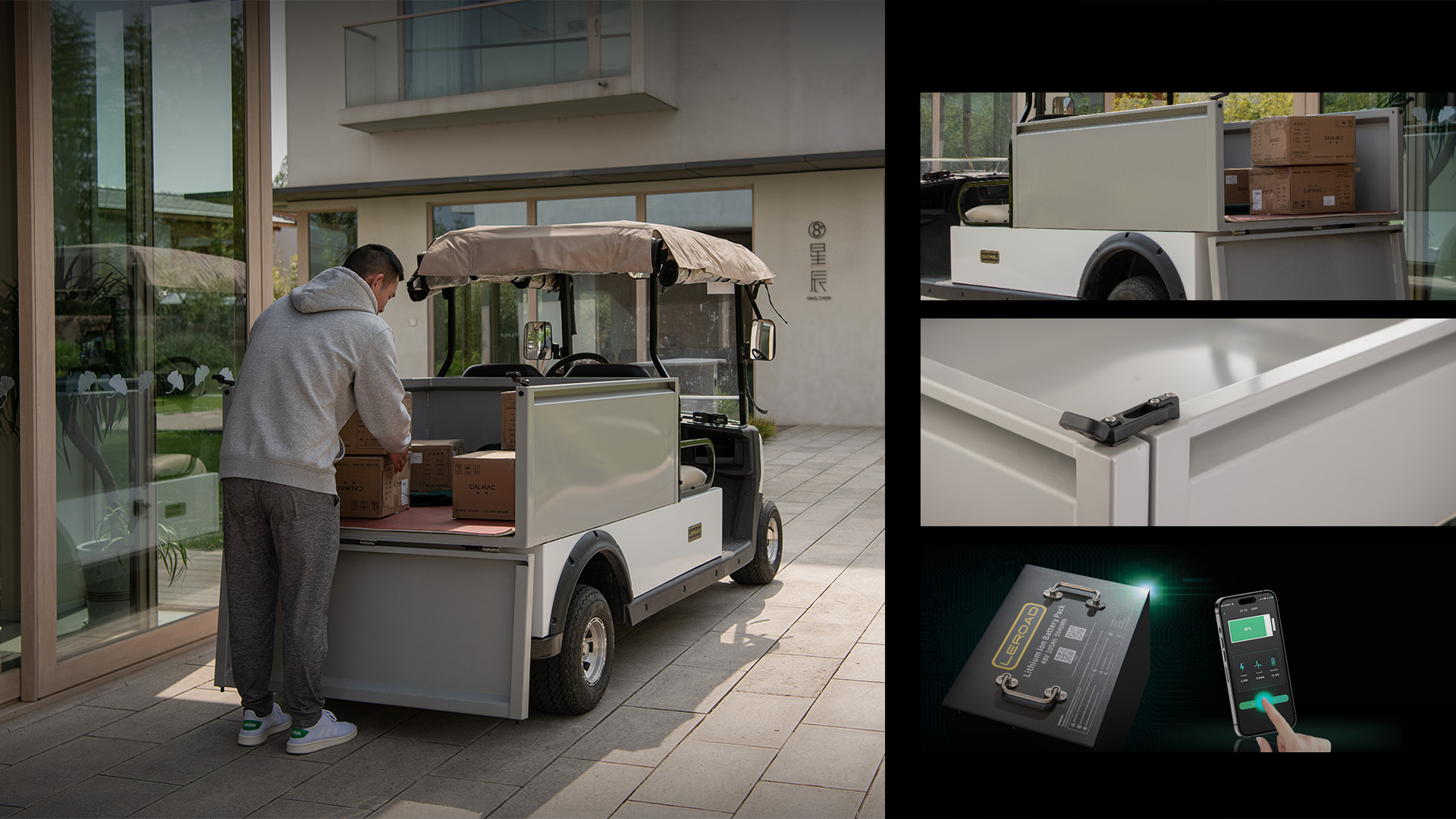

Its three-door carriage extends the load capacity easily

Driving speed

endurance

turning radius

braking distance

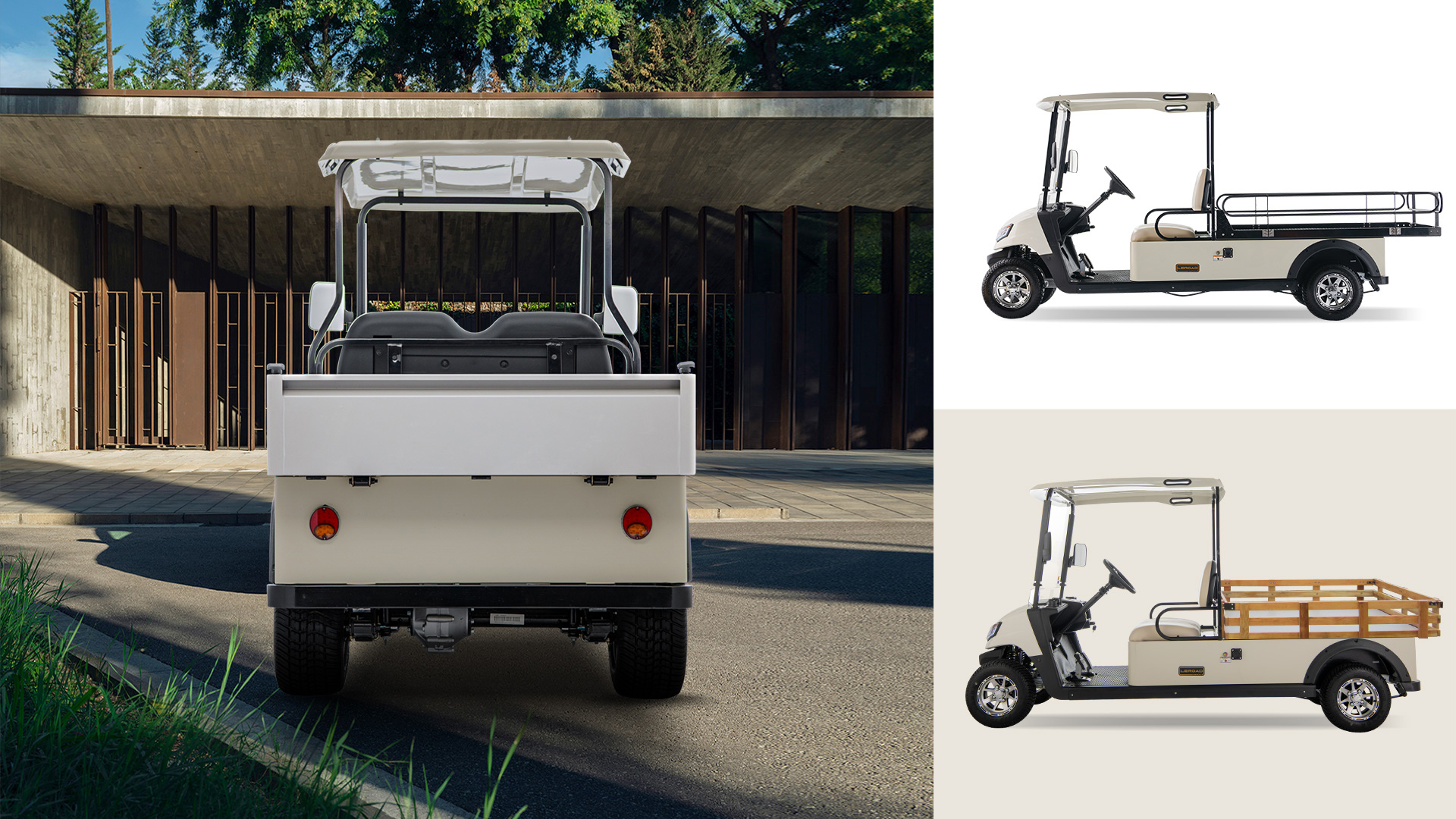

Applicable to different scenarios Many carriage sizes available

The whole vehicle has 3000+ parts in precise operation. All parts are carefully selected

The utility vehicle offers long-lasting battery life androbust power

Equipped with an on-board charger for instant charging,it handles all kinds of scenarios with ease

It is your reliable assistant for transportation and loadingtasks

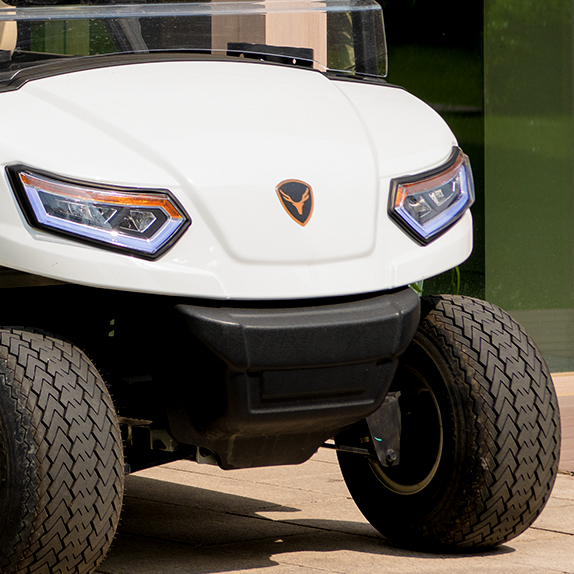

Front Fascia Design

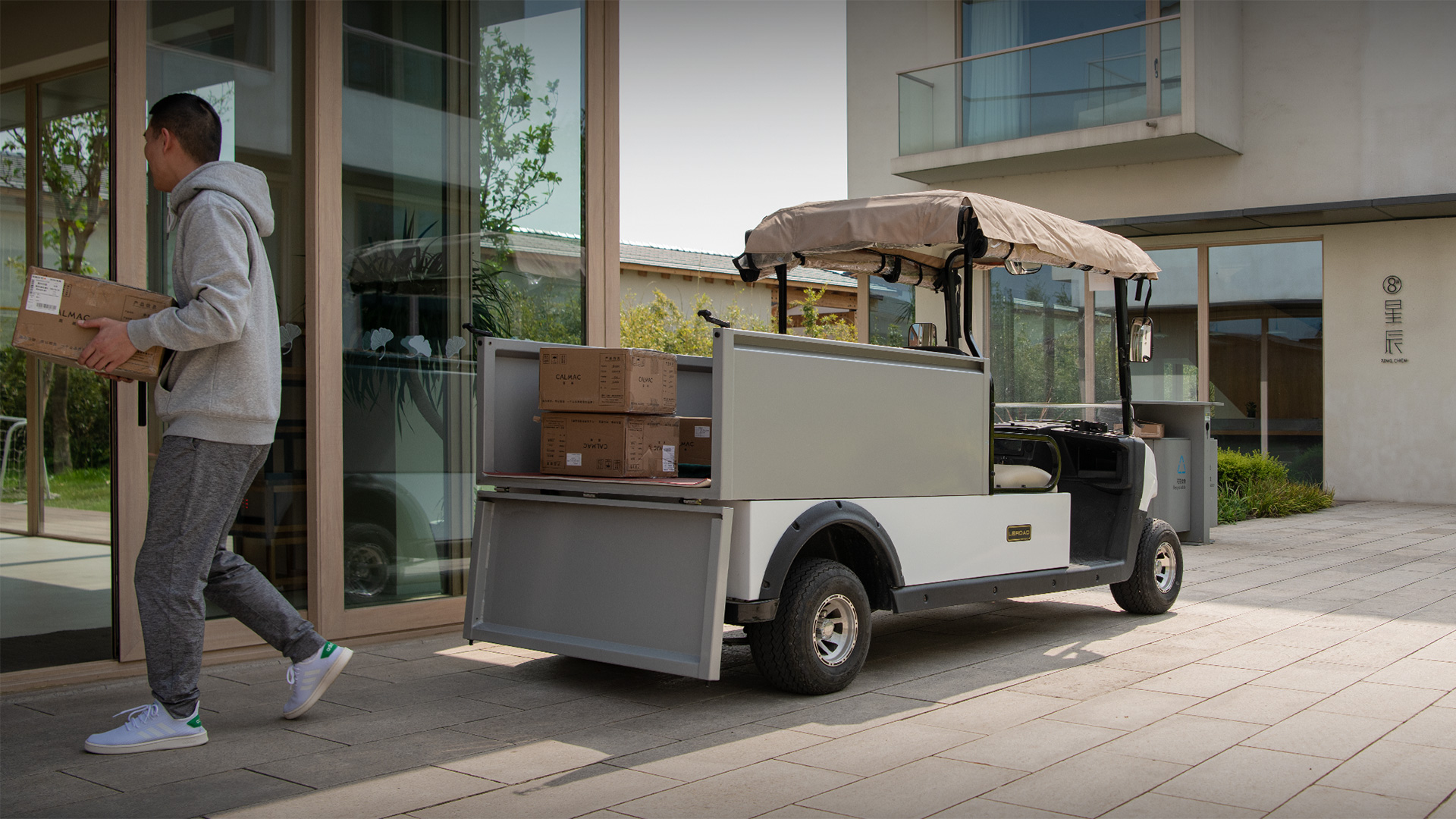

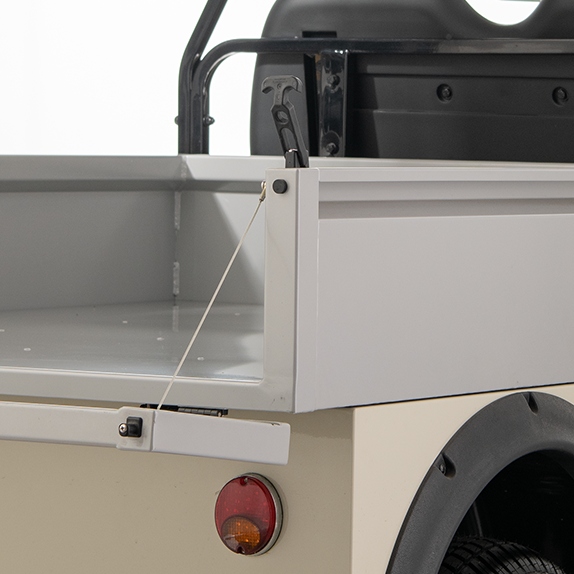

three-door carriage

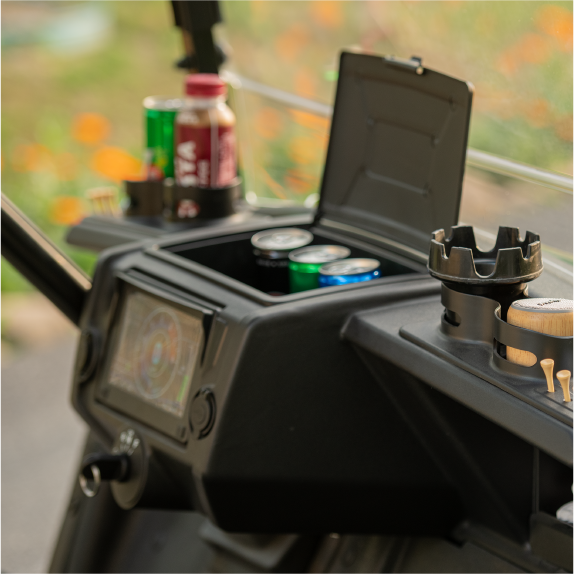

Dashboard Design

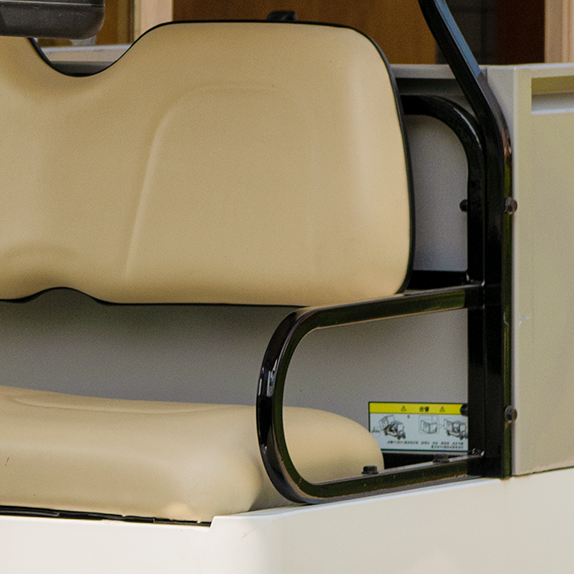

Seat Armrest Design

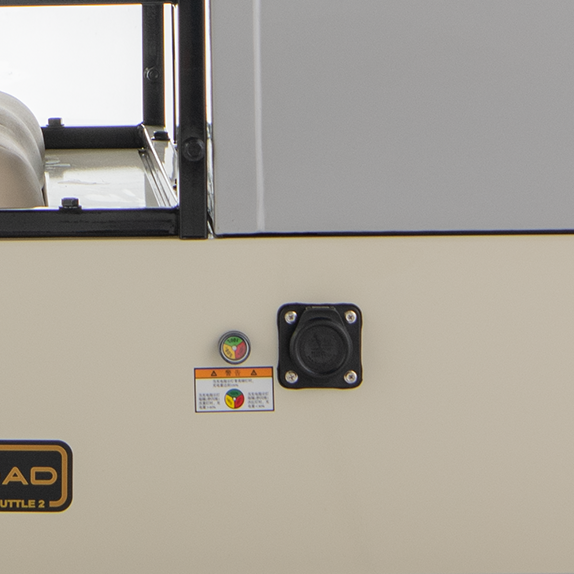

Streamlined Charging Port

Equipped with a superior powertrain, it delivers stable performance and a pleasant driving experience

turning radius

Component/Vehicle Testing

Climbing Capacity


Product Parameter		Shuttle 2 Aluminum cargo box
Load/Size	Length/Width/Height	3290-1204-1790	mm
	Rated Load	390	kg
	Curb Weight(Lithium battery)	500	kg
	Number of passengers	2	People
	Minimum ground Clearance	120	mm
	Wheelbase	2453	mm
	Front/rear axle track	880/970	mm
	Tyre	18×8.5-8
Powertrain	Voltage	48	v
	Motor Type	Nidec (KDS) motor(5)	kw
	Controller	Leroad Controller	A
	Battery	6x8V deep cycle lead-acid batteries/105-160Ah lithium battery	Ah
	Charger	Leroad Charger
Performance	Max speed	8-30 (Optional)	km/h
	endurance	80-100	km
	turning radius	4000	mm
	Steering system	Bi-directional Push Gear and Rack Steering Box
	Front suspension	Macphersan independent suspension
	Rear suspension	Plate Spring of Variable Cross-section and Damper
	Braking system	Rear Wheel Mechanical Brake and Service Brake System
	braking distance	≤ 3500	mm
Vehicle Color	Standard Body Color	Black, White, Ivory, Turquoise,
		Wormwood Green, Forest Green, Sky Blue,
		Electric Blue, Golden Deer Color, Dior Red

	Standard Seat Color	Beige
