Leroad L2

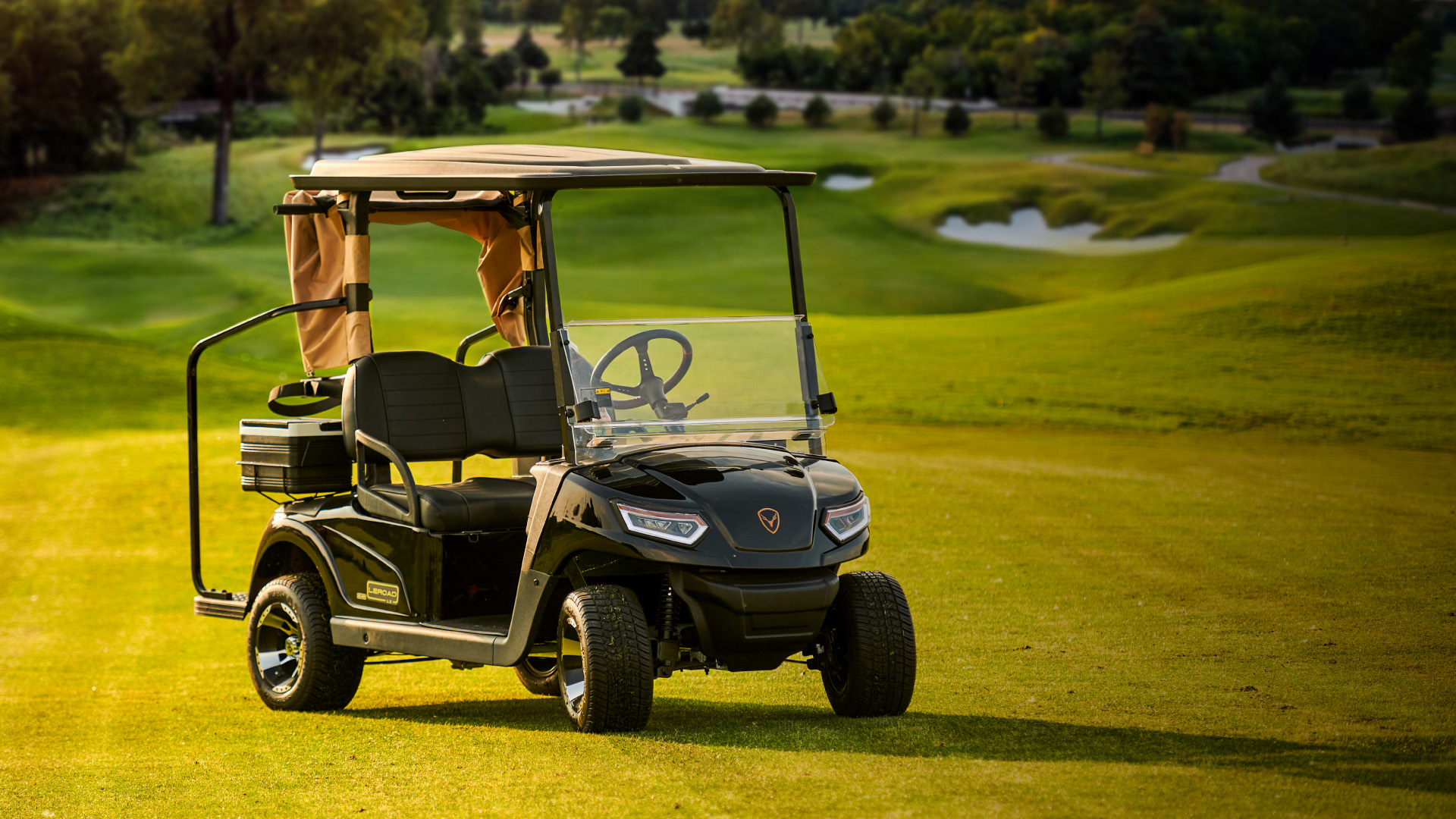

Classic design
360-degree display of beauty

Driving speed

endurance

turning radius

braking distance

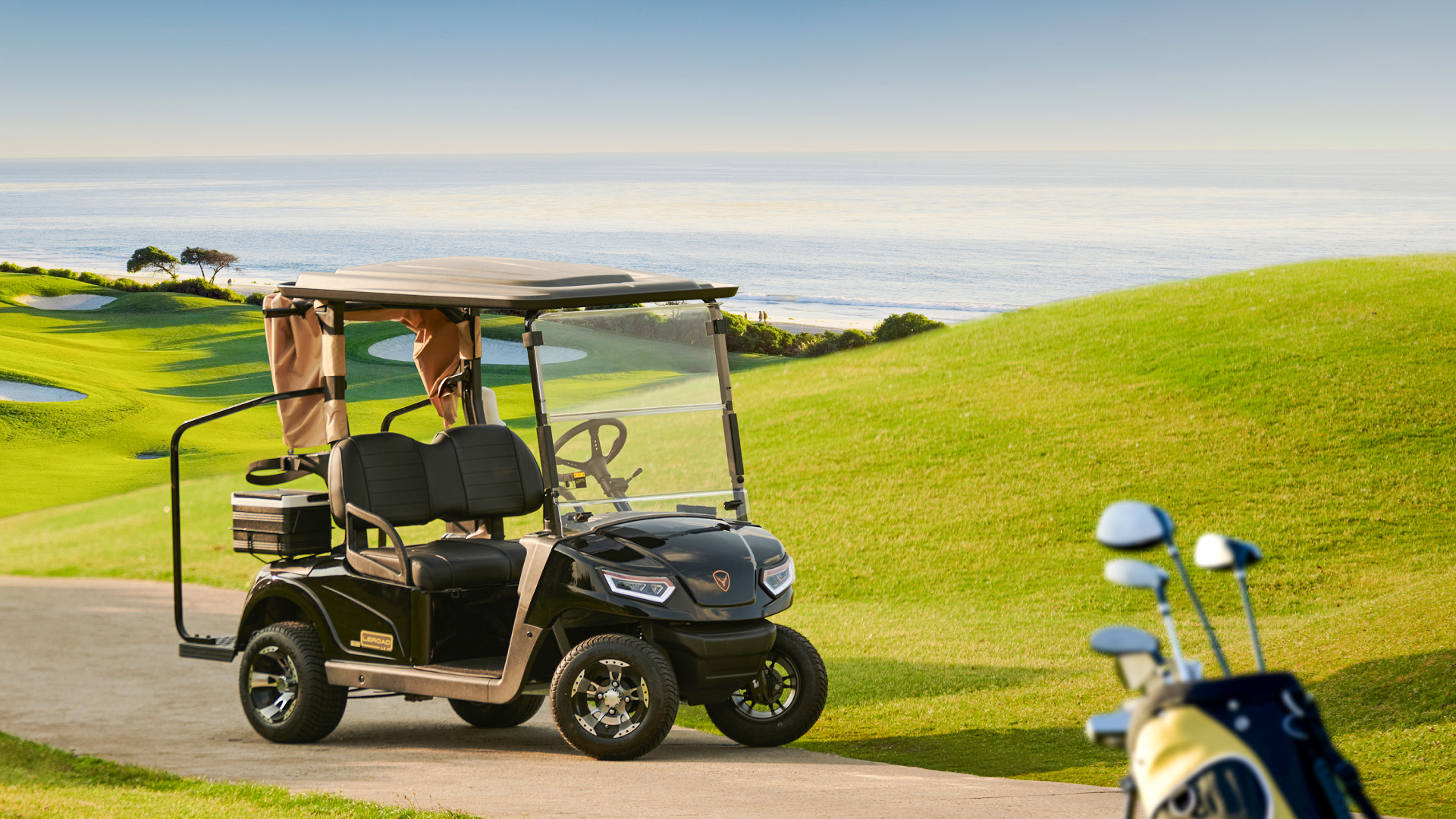

Leading appearance design, making it special and different in court

One cap for one bolt for 3,000+ vehicle parts to ensure operation precision

Every detail of the L2 has been analyzed by professional users

and a team of passionate automotive engineers

and designers to deliver a reliable golf cart for you.

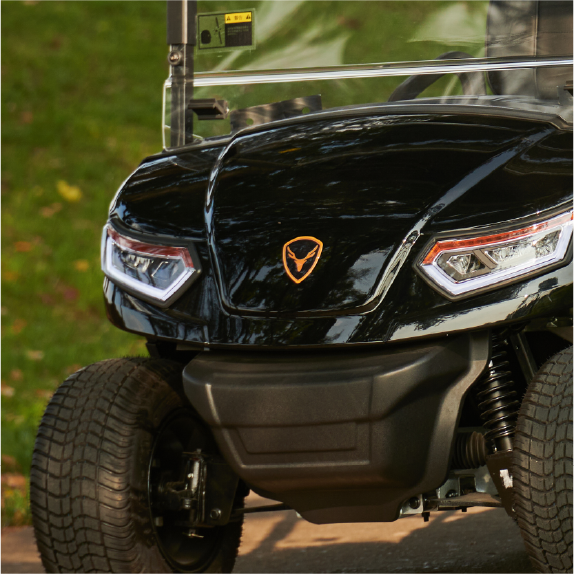

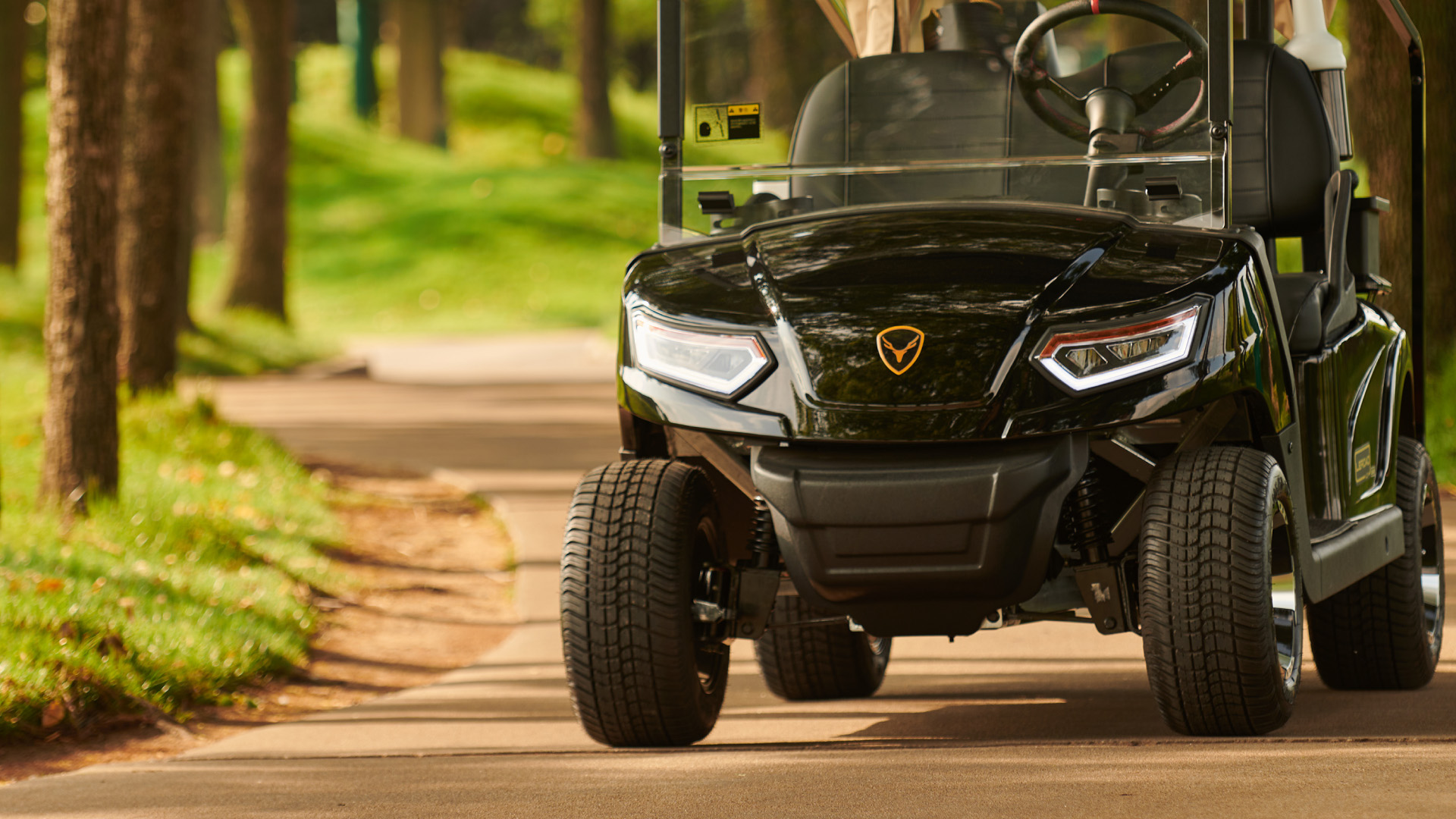

Front fascia design

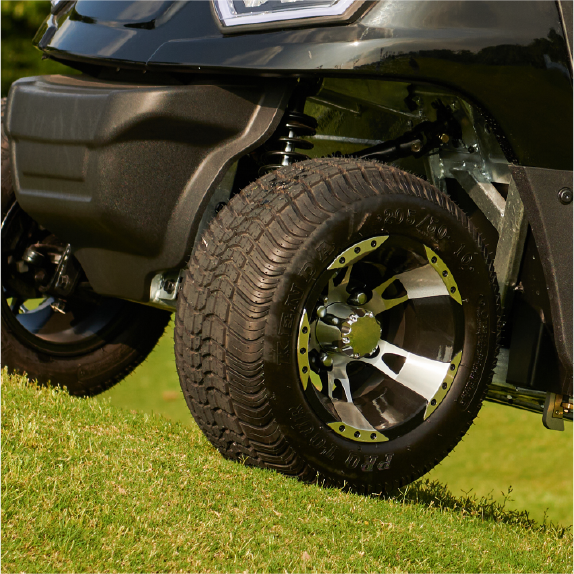

Macphersan independent suspension

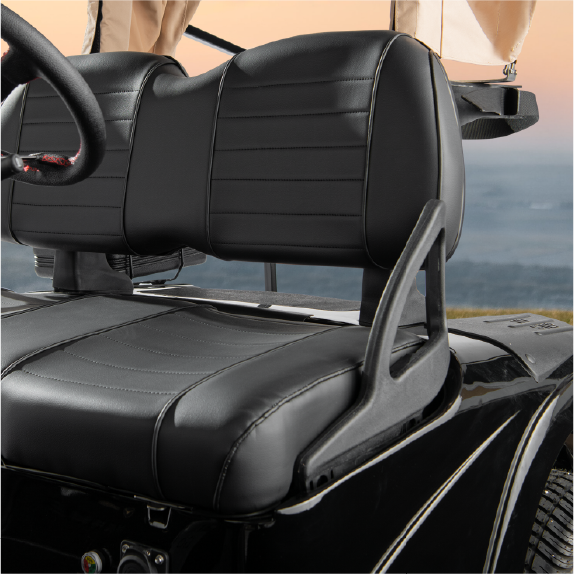

Widened seat design

Rear golf bag cover

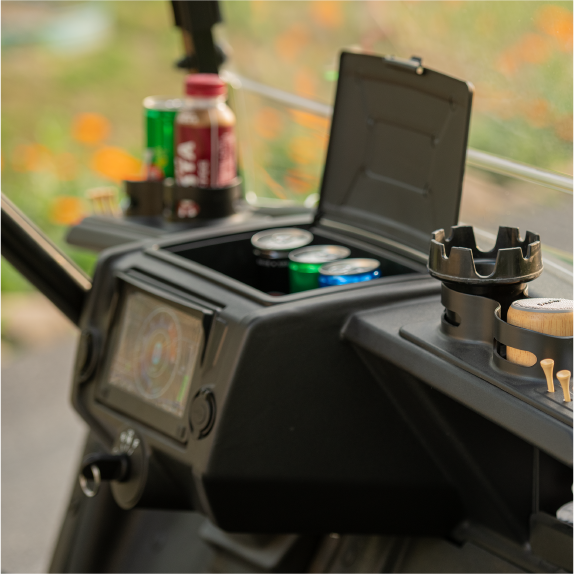

Dashboard design

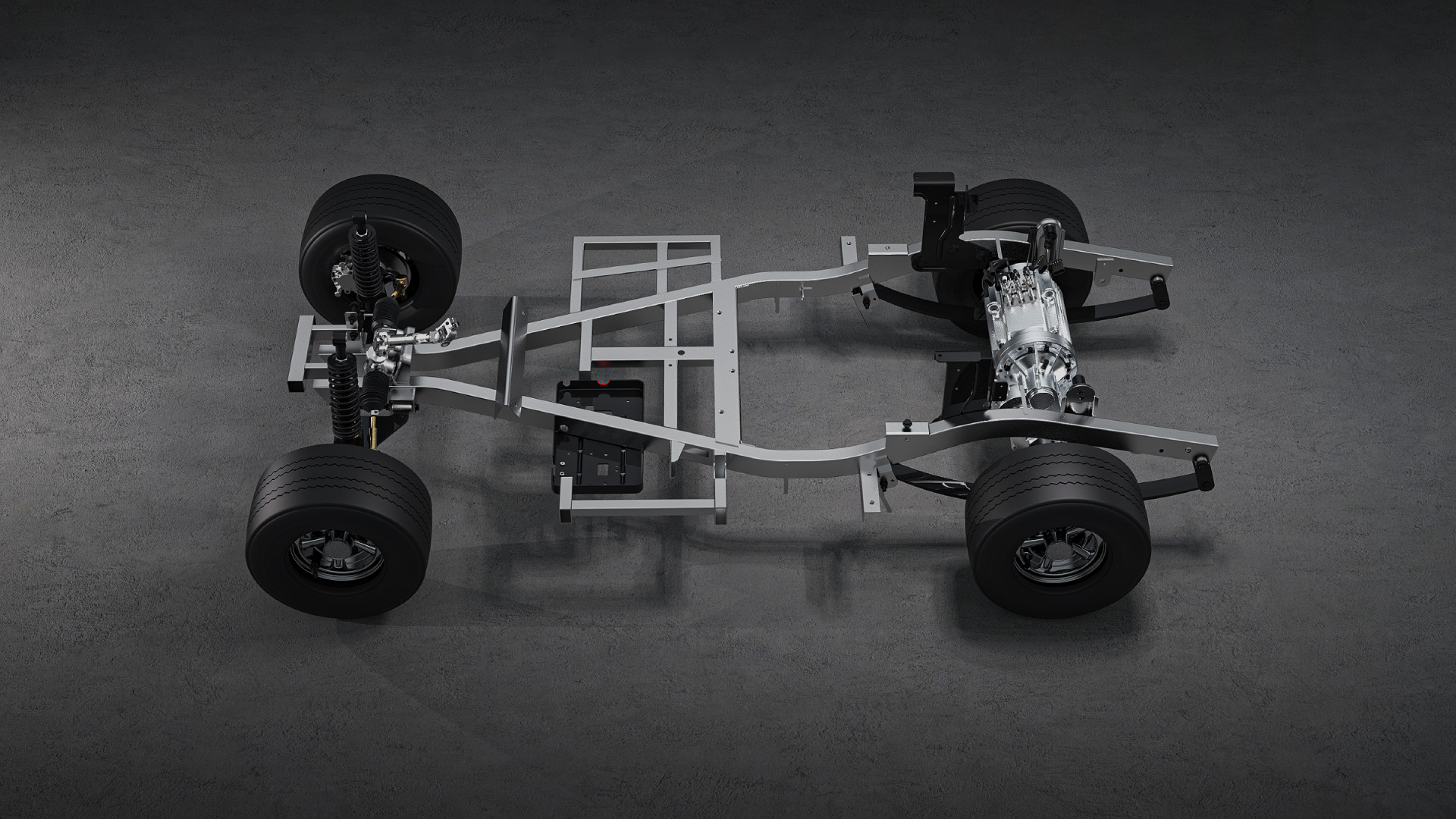

The product is fitted with exceptional power system, which contributes to stable and joyful driving experience

Turning Radius

Component/Vehicle Testing

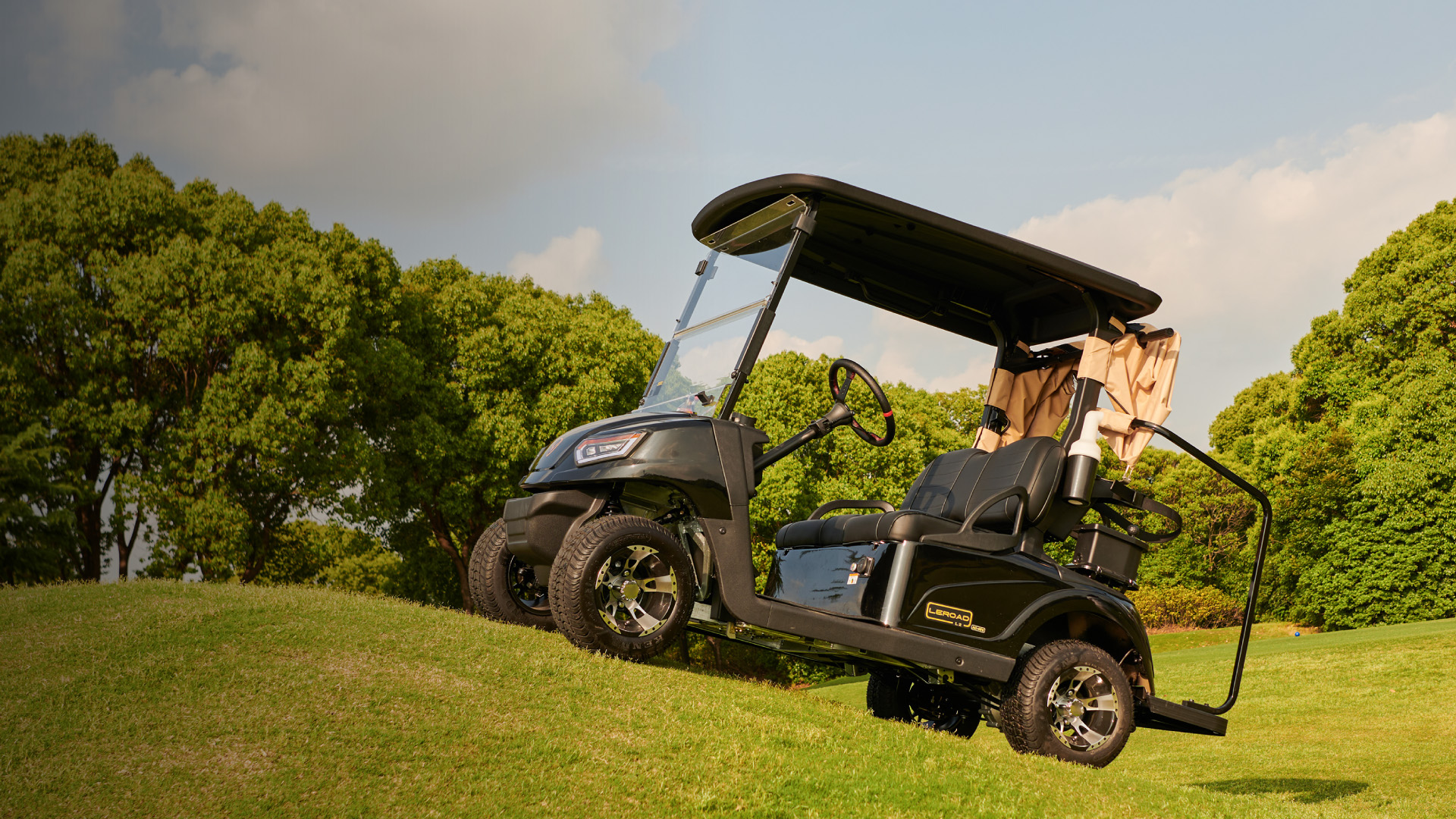

Climbing Capacity

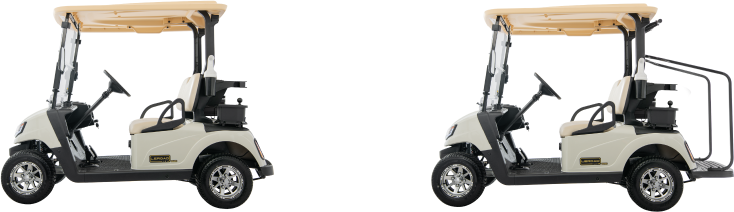

Product Parameter		L2 Standard	L2+CSA
Load/Size	Length/Width/Height	2425-1180-1780	2655-1180-1780	mm
	Rated Load	200	370	kg
	Curb Weight(Lithium battery)	340	360	kg
	Number of passengers	2	2	People
	Minimum ground Clearance	120	120	mm
	Wheelbase	1673	1673	mm
	Front/rear axle track	880/970	880/970	mm
	Tyre	215/50-12	215/50-12
Powertrain	Voltage	48		v
	Motor Type	4KW、5KW		kw
	Controller	Leroad Controller		A
	Battery	6x8V deep cycle lead-acid batteries/105-160Ah lithium battery		Ah
	Charger	Leroad Charger
Performance	Max speed	8-30 (Optional)		km/h
	Range	80-100		km
	Turning Radius	2900		mm
	Steering system	Bi-directional Push Gear and Rack Steering Box
	Front suspension	Macpherson Independent Suspension
	Rear suspension	Plate Spring of Variable Cross-section and Damper
	Braking system	Rear Wheel Mechanical Brake and Service Brake System
	Braking distance	≤ 3000		mm
Vehicle Color	Standard Body Color	Black, White, Ivory, Turquoise, Wormwood Green,
		Forest Green, Sky Blue, Electric Blue,
		Golden Deer Color, Dior Red
	Standard Seat Color	Beige
