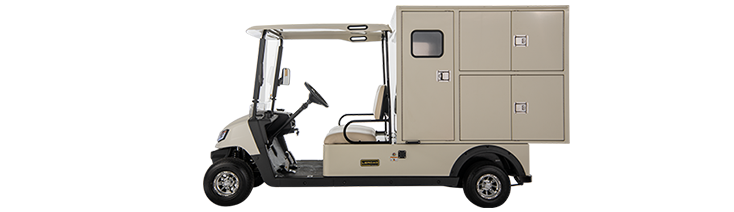

Leroad Linen truck

Big carriage;
many chambers used for placing linens as needed;

Driving speed

endurance

turning radius

braking distance

A Wide Range of Application Scenarios, Multiple Cargo Box Options

One cap for one bolt for 3,000+ vehicle parts to ensure operation precision

The linen truck features long-lasting battery life and powerful performance

Equipped with an on-board charger for instant charging, it handles all scenarios with ease

It is your reliable assistant for transportation and loading tasks

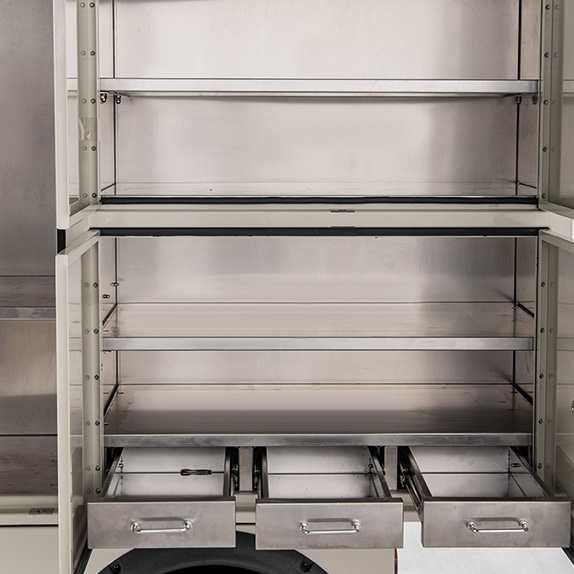

Multi-layer Storage Design

Streamlined Charging Port

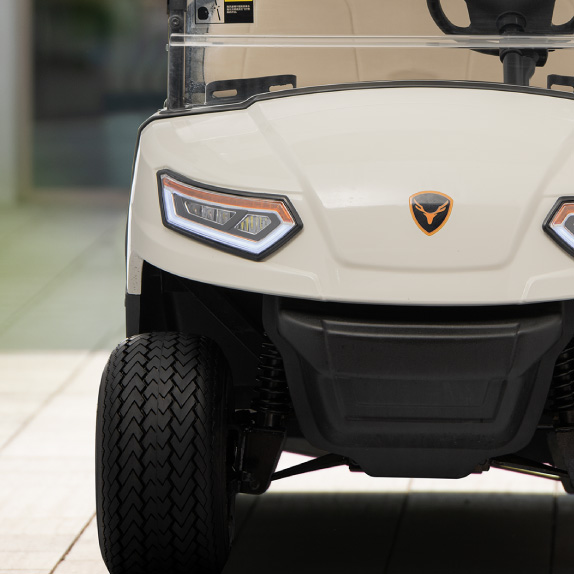

Front Face Design

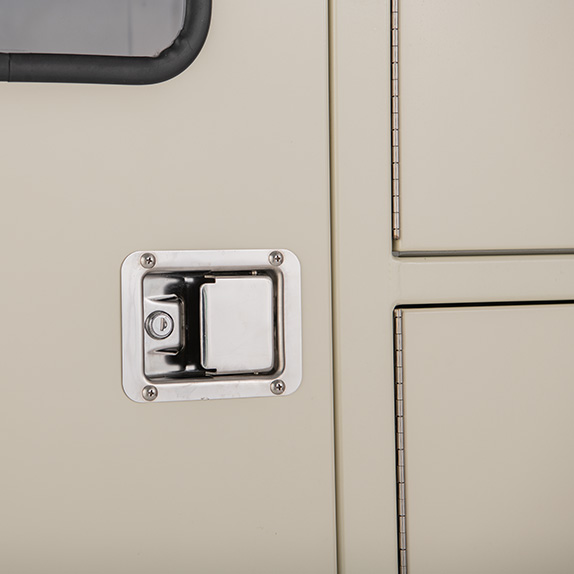

Exquisite Cargo Box Craftsmanship

Seat armrest design

Equipped with a superior powertrain, it ensures stable performance and a pleasant driving experience

turning radius

Component/Vehicle Testing

Climbing Capacity


Product Parameter		Shuttle 2 Van Box (big cargo box)	Shuttle 2 Van Box (small cargo box)
Load/Size	Length/Width/Height	3215-1210-1760	2895-1210-1760	mm
	Rated Load	390	390	kg
	Curb Weight	600	553	kg
	Number of passengers	2		People
	Minimum ground Clearance	120		mm
	Wheelbase	2453		mm
	Front/rear axle track	880/970		mm
	Tyre	18×8.5-8
Powertrain	Voltage	48		v
	Motor Type	(4、5)		kw
	Controller	Leroad Controller		A
	Battery	6x8V deep cycle lead-acid batteries/105-160Ah lithium battery		Ah
	Charger	Leroad Charger
Performance	Max speed	8-30 (Optional)		km/h
	endurance	80-100		km
	turning radius	4000		mm
	Steering system	Bi-directional Push Gear and Rack Steering Box
	Front suspension	Macphersan independent suspension
	Rear suspension	Plate Spring of Variable Cross-section and Damper
	Braking system	Rear Wheel Mechanical Brake and Service Brake System
	braking distance	≤ 3500		mm
Vehicle Color	Standard Body Color	Black, White, Ivory, Turquoise,
		Wormwood Green, Forest Green, Sky Blue,
		Electric Blue, Golden Deer Color, Dior Red

	Standard Seat Color	Beige
