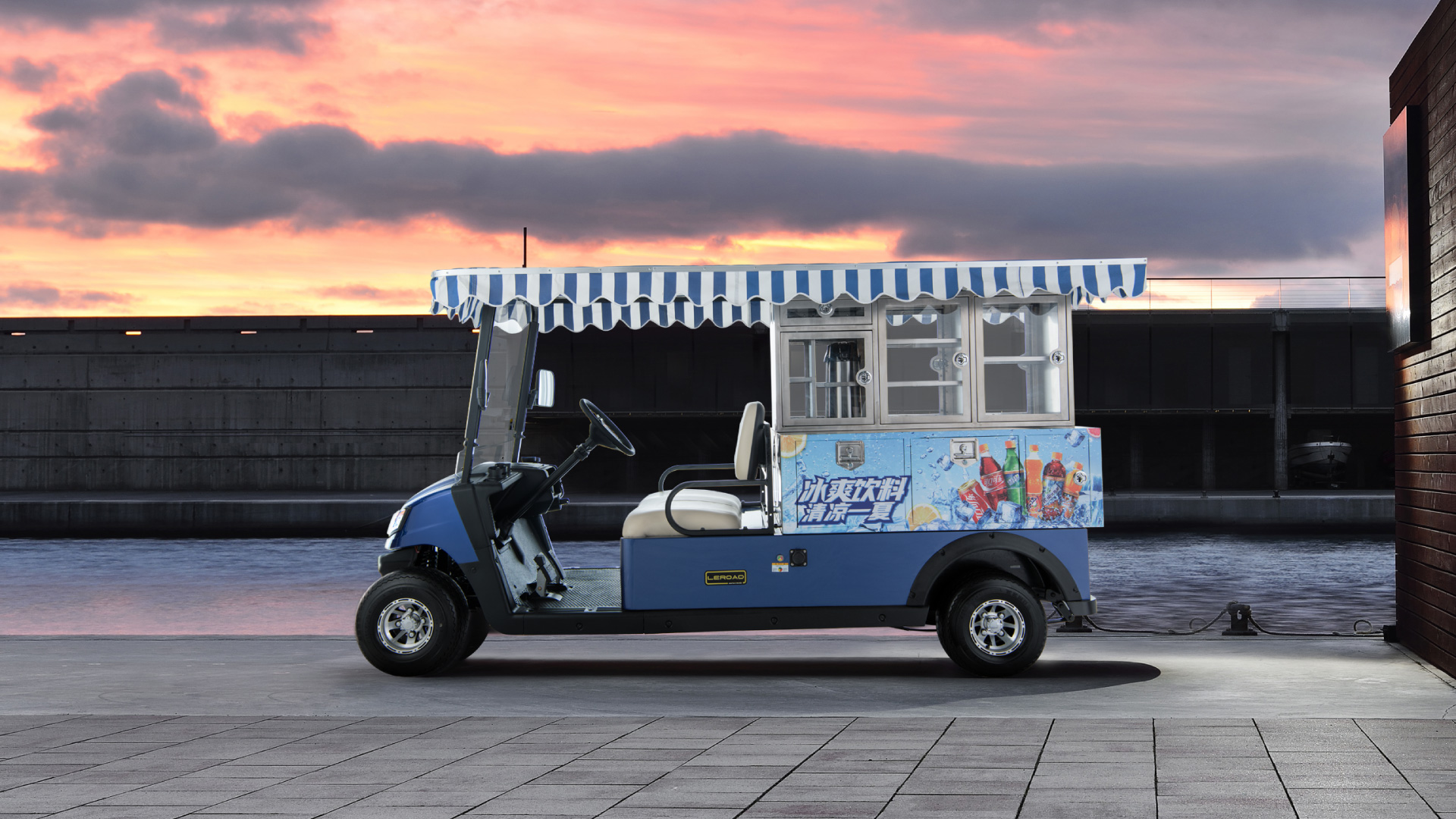

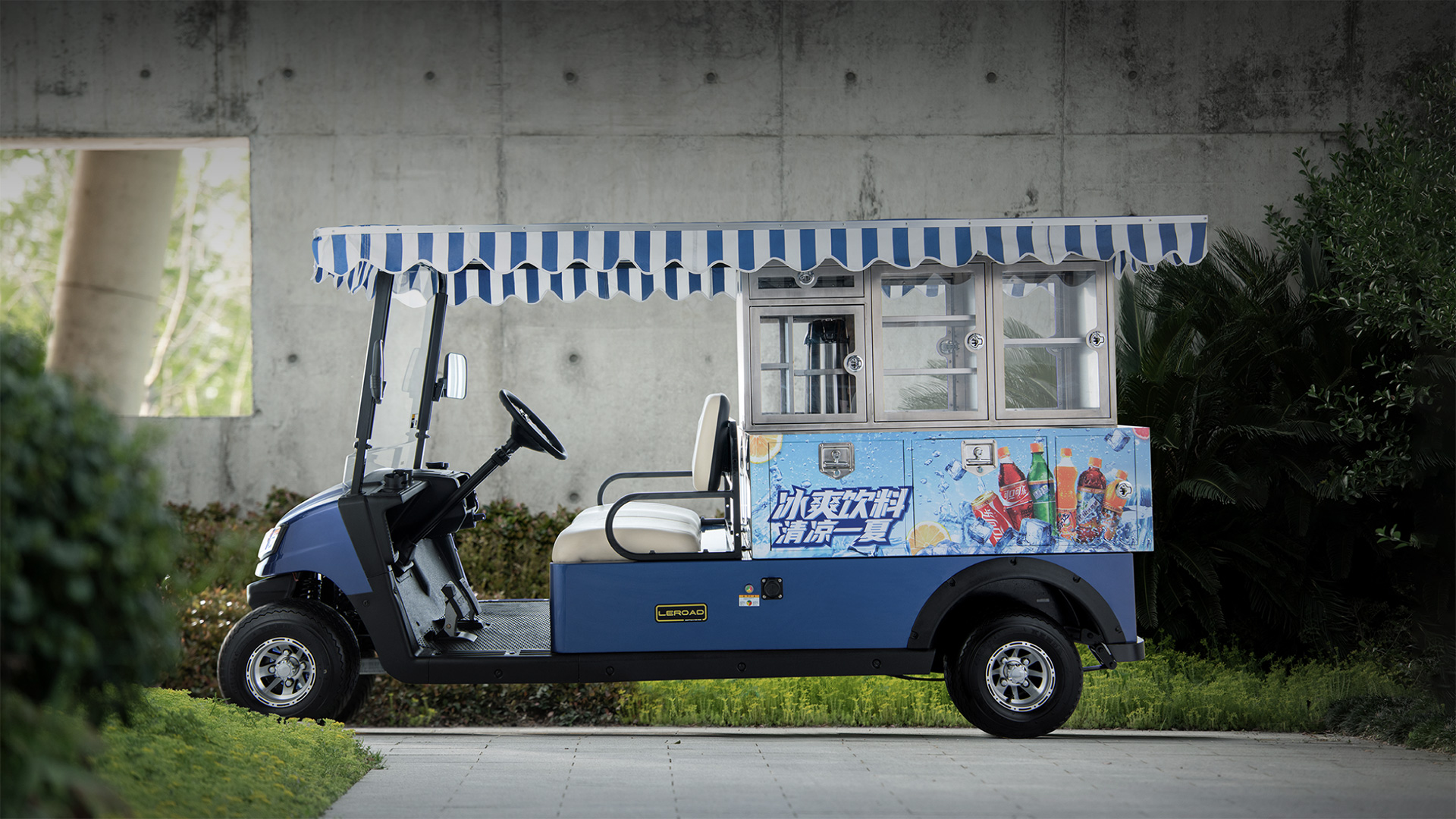

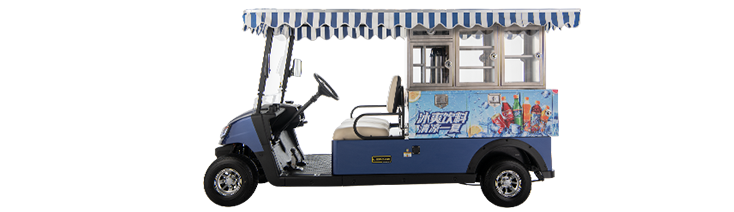

Leroad Vending Cart

Well-Designed Layout
many chambers for storage Top Sales Performer

Driving speed

endurance

turning radius

braking distance

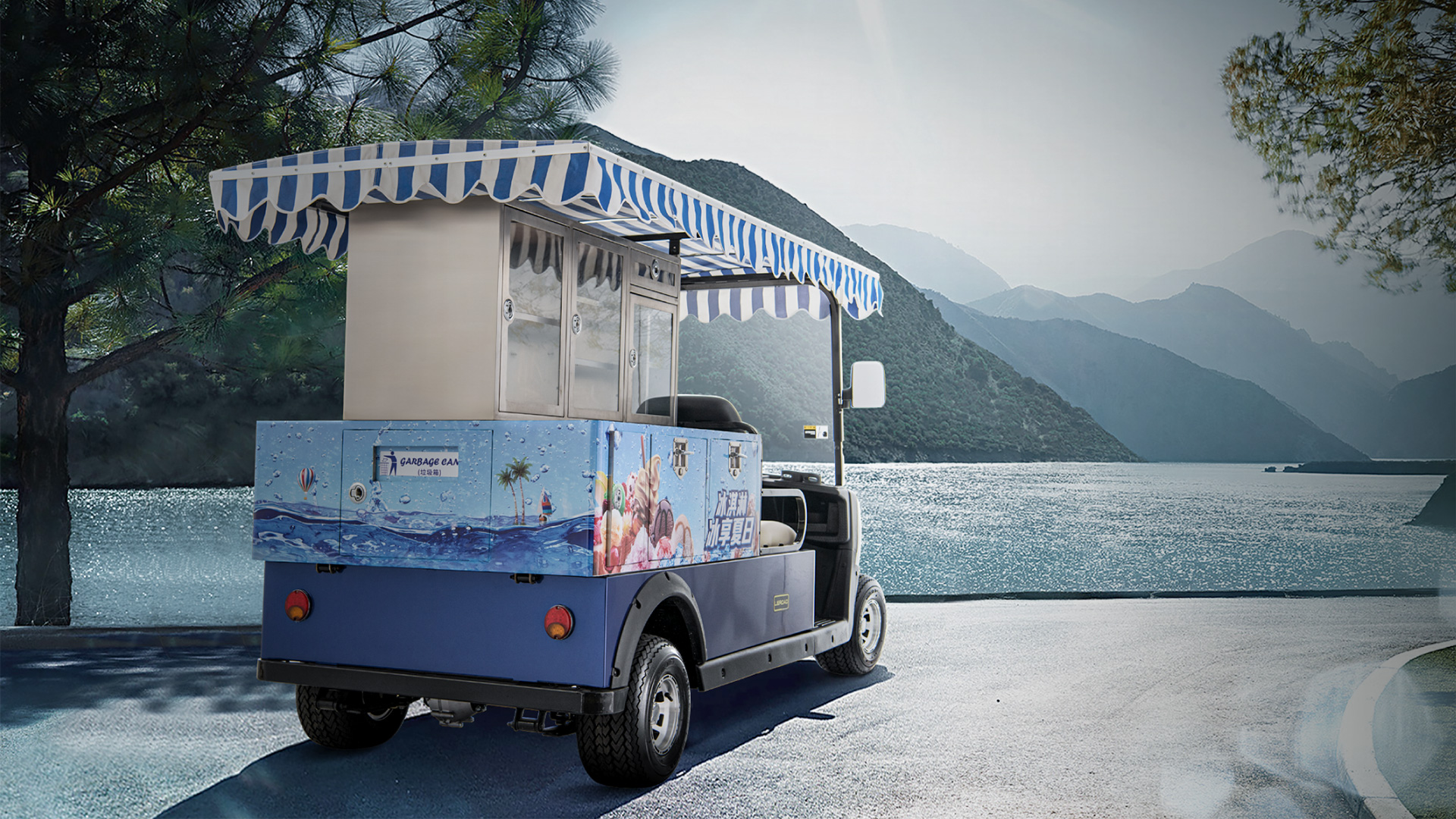

Wide Range of Application Scenarios, Large-Capacity Insulated Box

One cap for one bolt for 3,000+ vehicle parts to ensure operation precision

The vending cart features long-lasting battery life and powerful performance

Equipped with an on-board charger for instant charging, it handles all kinds of scenarios with ease.

It is your reliable assistant for transportation and loading tasks。

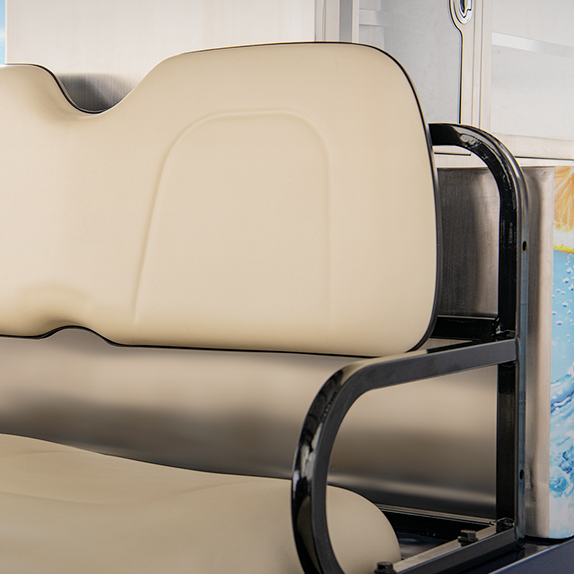

Seat armrest design

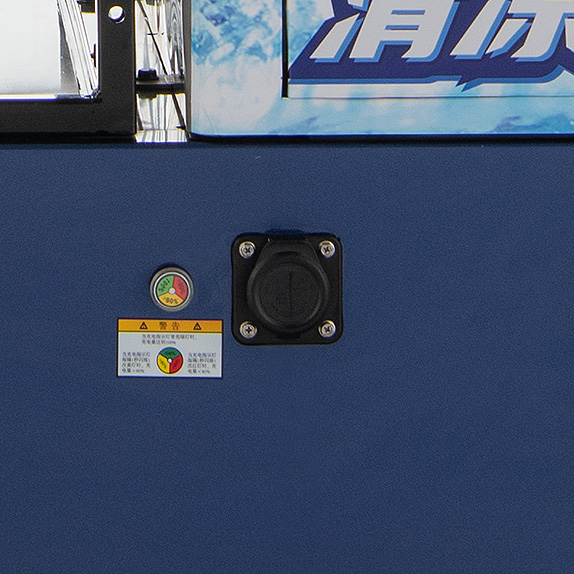

Streamlined charging port

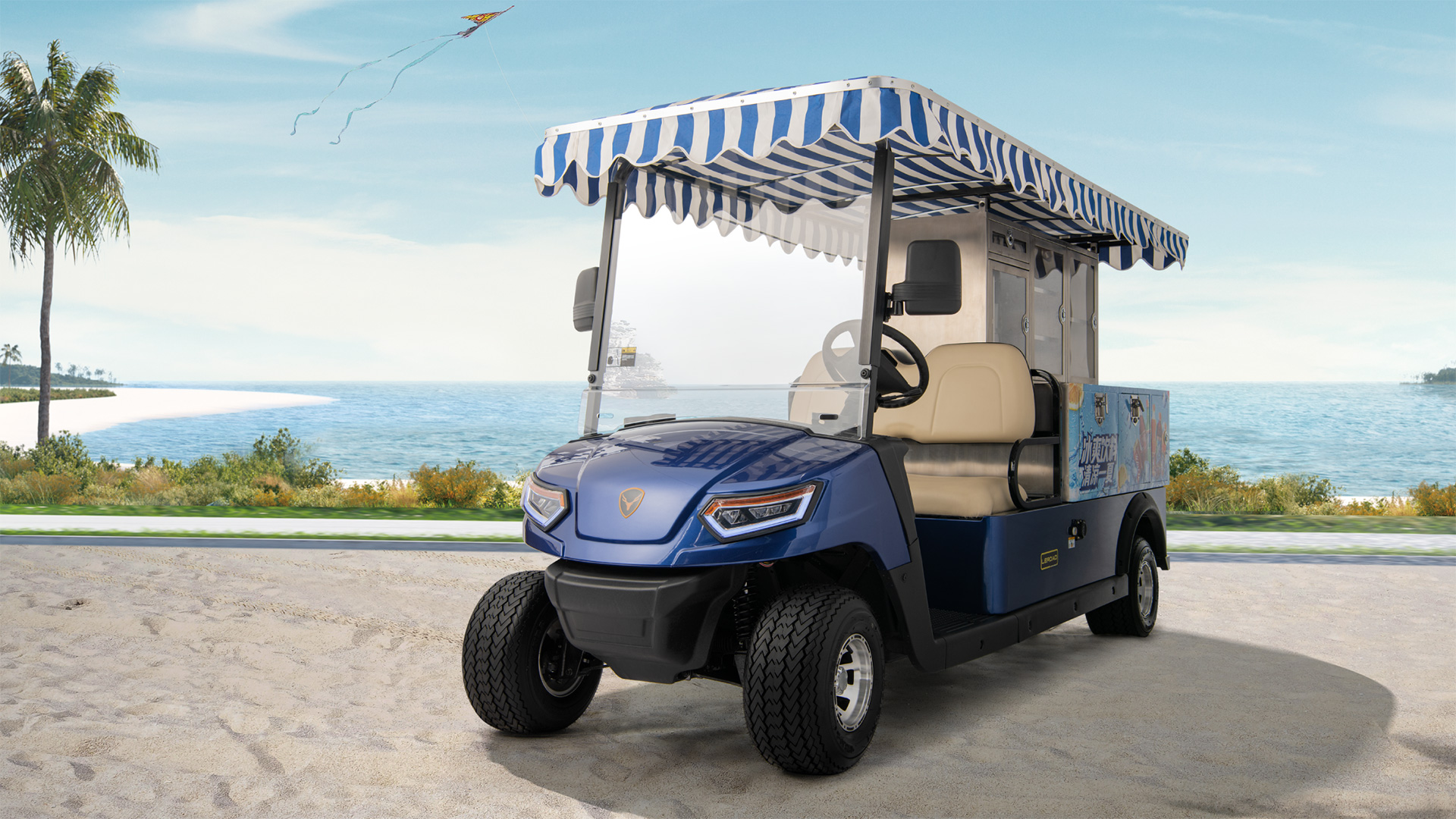

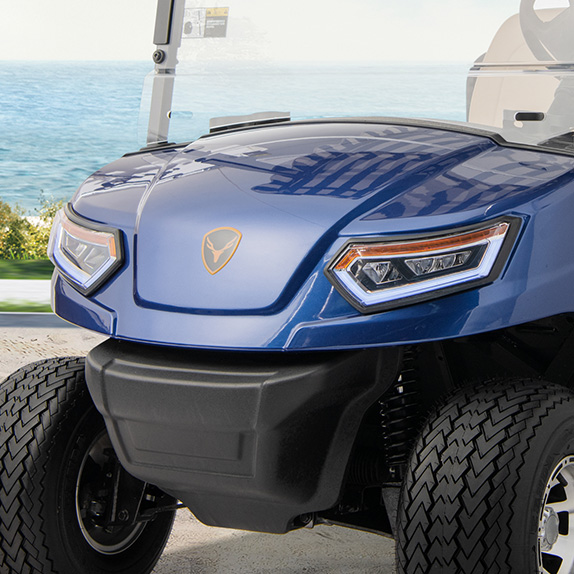

Front face design

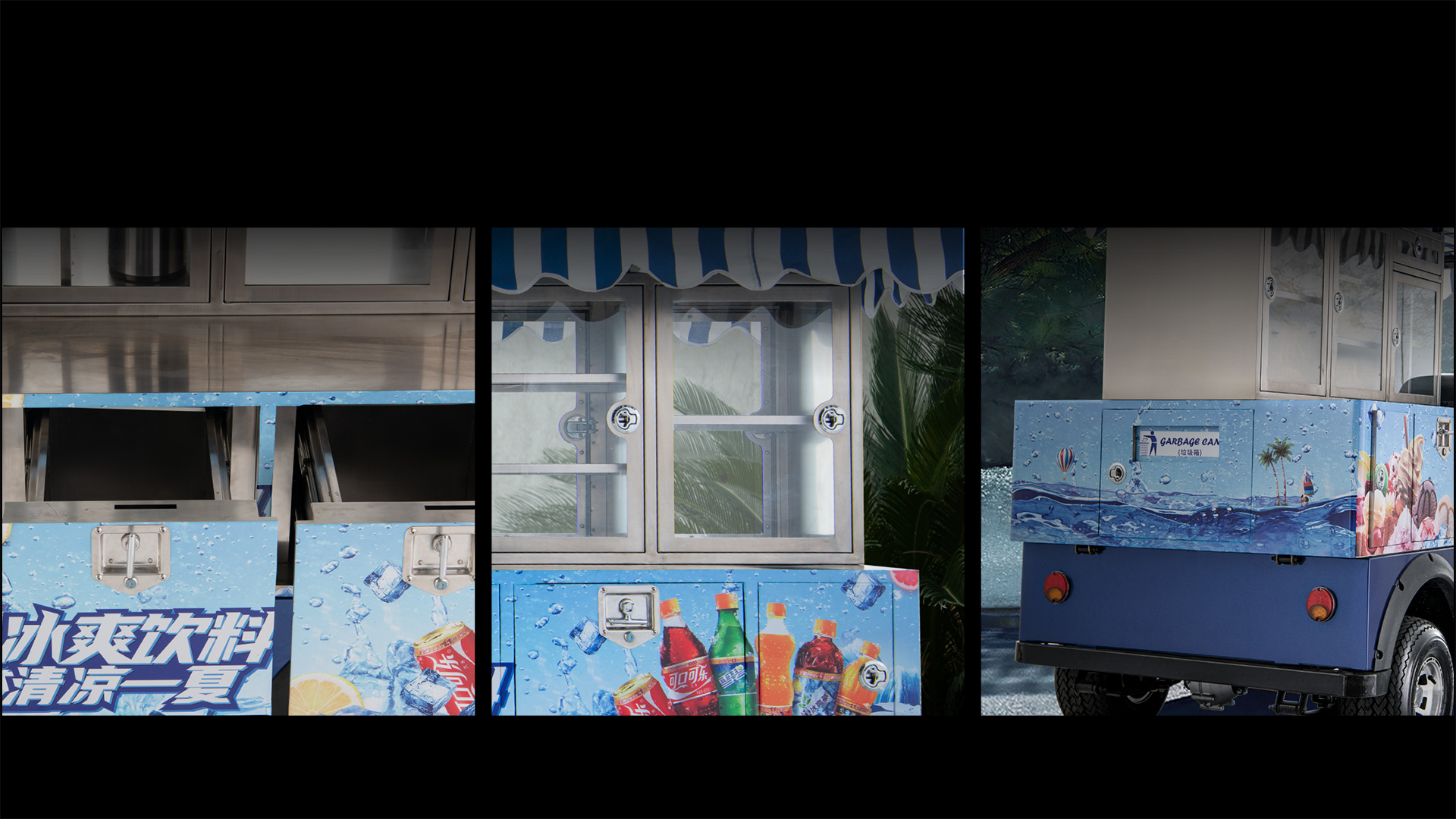

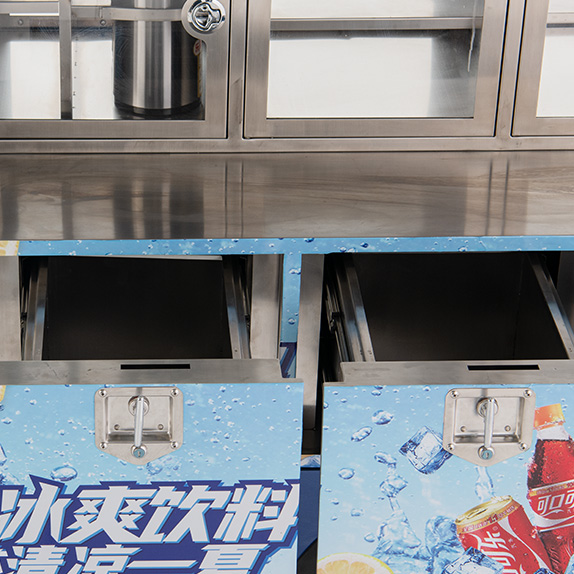

Rational compartmentalization of the cargo box

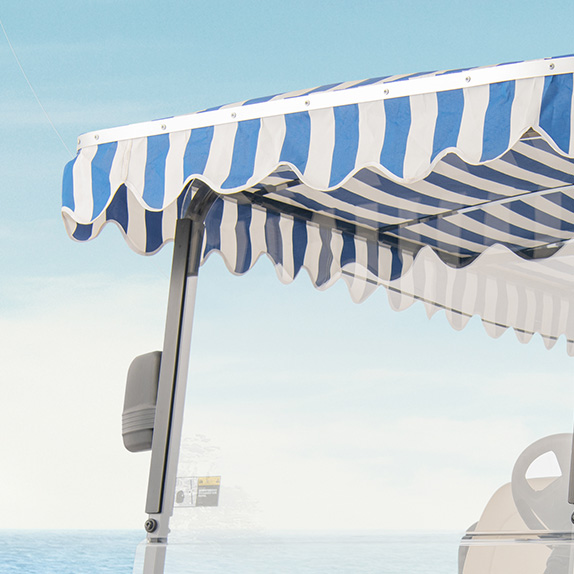

Rainproof roof design

Equipped with a superior powertrain, it delivers stable performance and a pleasant driving experience

turning radius

Component/Vehicle Testing

Climbing Capacity


Product Parameter		Vending Cart
Load/Size	Length/Width/Height	3390-1210-1780	mm
	Rated Load	320	kg
	Curb Weight	780	kg
	Number of passengers	2	People
	Minimum ground Clearance	120	mm
	Wheelbase	2453	mm
	Front/rear axle track	885/970	mm
	Tyre	18×8.5-8，205/50-10
Powertrain	Voltage	48	v
	Motor Type	(4、5)	kw
	Controller	Leroad Controller	A
	Battery	6x8V deep cycle lead-acid batteries/105-160Ah lithium battery	Ah
	Charger	Leroad Charger
Performance	Max speed	8-30 (Optional)	km/h
	endurance	80-100	km
	turning radius	4000	mm
	Steering system	Bi-directional Push Gear and Rack Steering Box
	Front suspension	Macphersan independent suspension
	Rear suspension	Plate Spring of Variable Cross-section and Damper
	Braking system	Rear Wheel Mechanical Brake and Service Brake System
	braking distance	≤ 3500	mm
Vehicle Color	Standard Body Color	Black, White, Ivory, Turquoise,
		Wormwood Green, Forest Green, Sky Blue,
		Electric Blue, Golden Deer Color, Dior Red

	Standard Seat Color	Beige
