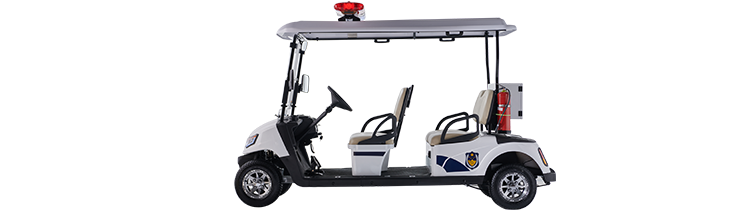

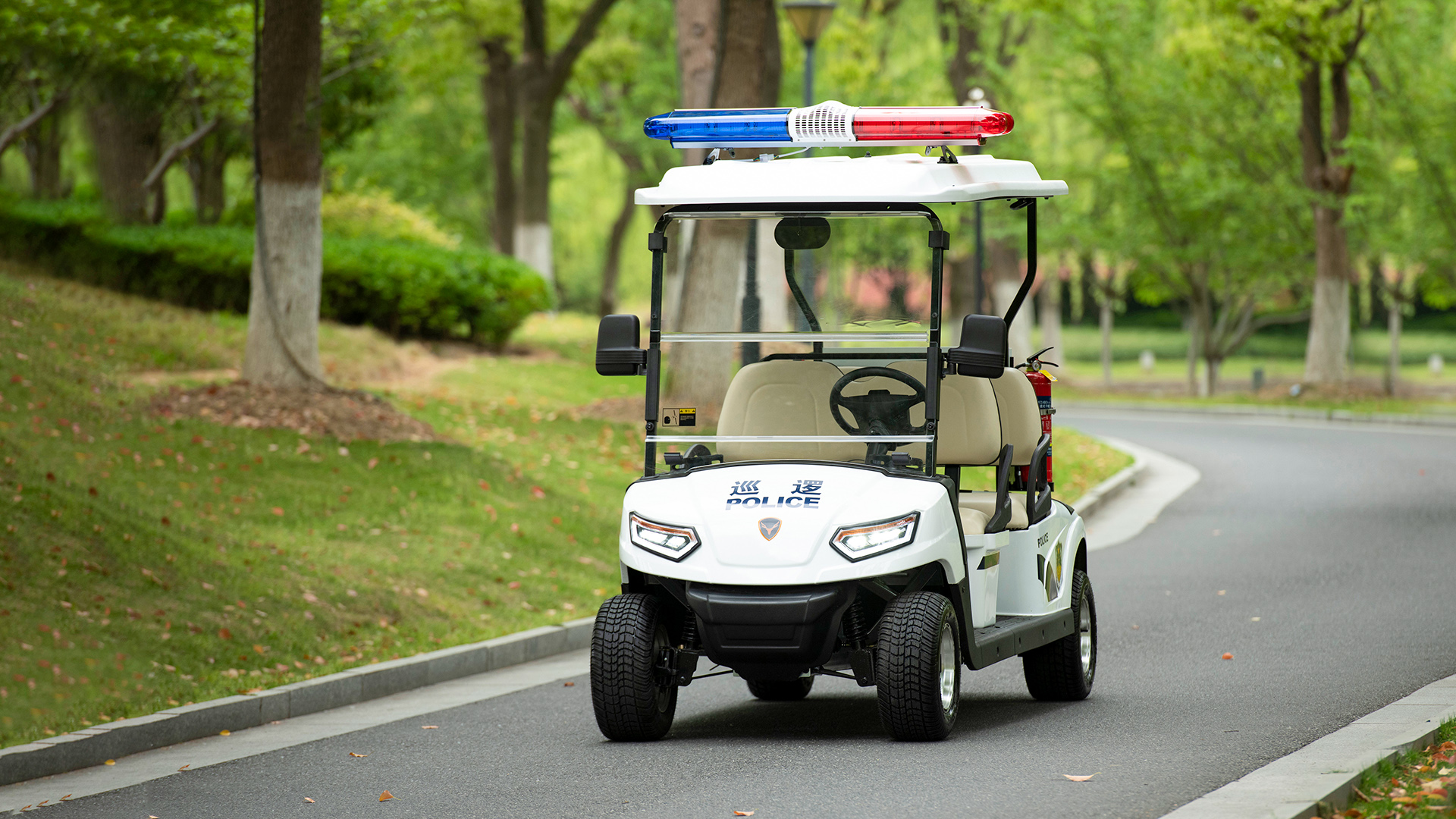

Leroad Patrol car

Low-carbon
Efficient and Convenient for Multi-Scenario Applications

Driving speed

endurance

turning radius

braking distance

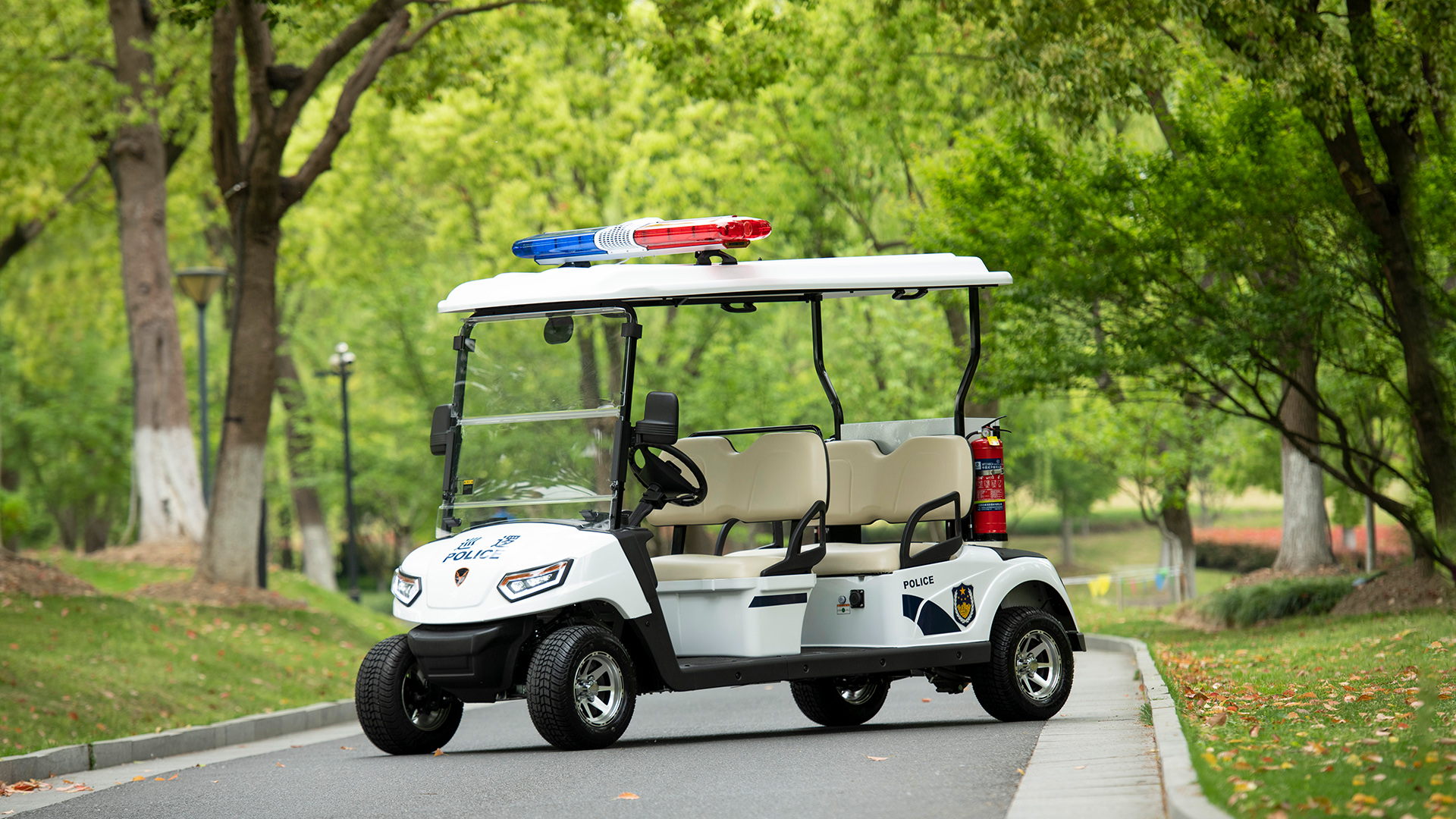

Scenic spots, parks, gardens, residential areas, airports, high-speed rail station (patrol check); convenient and efficient

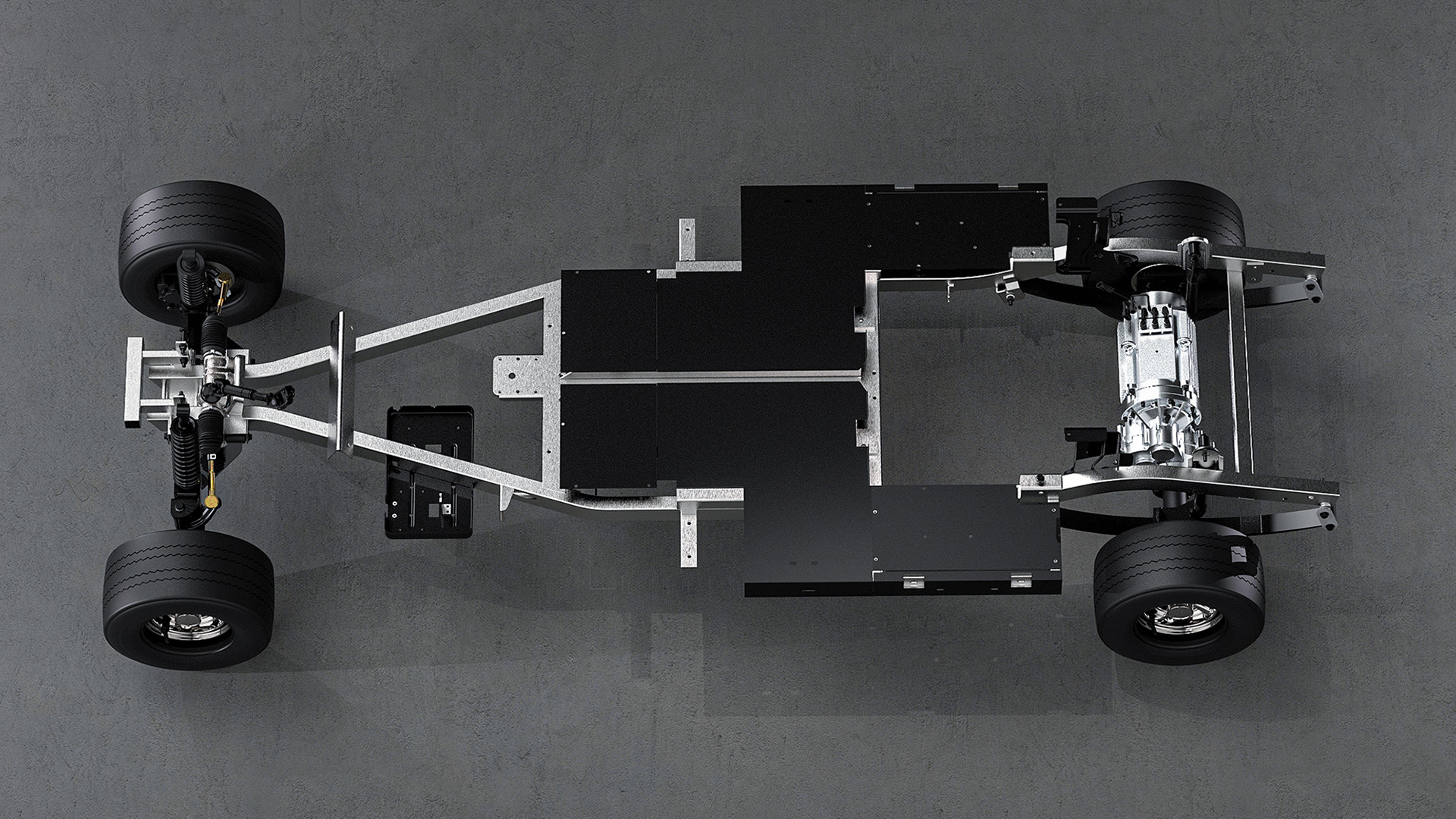

One cap for one bolt for 3,000+ vehicle parts to ensure operation precision

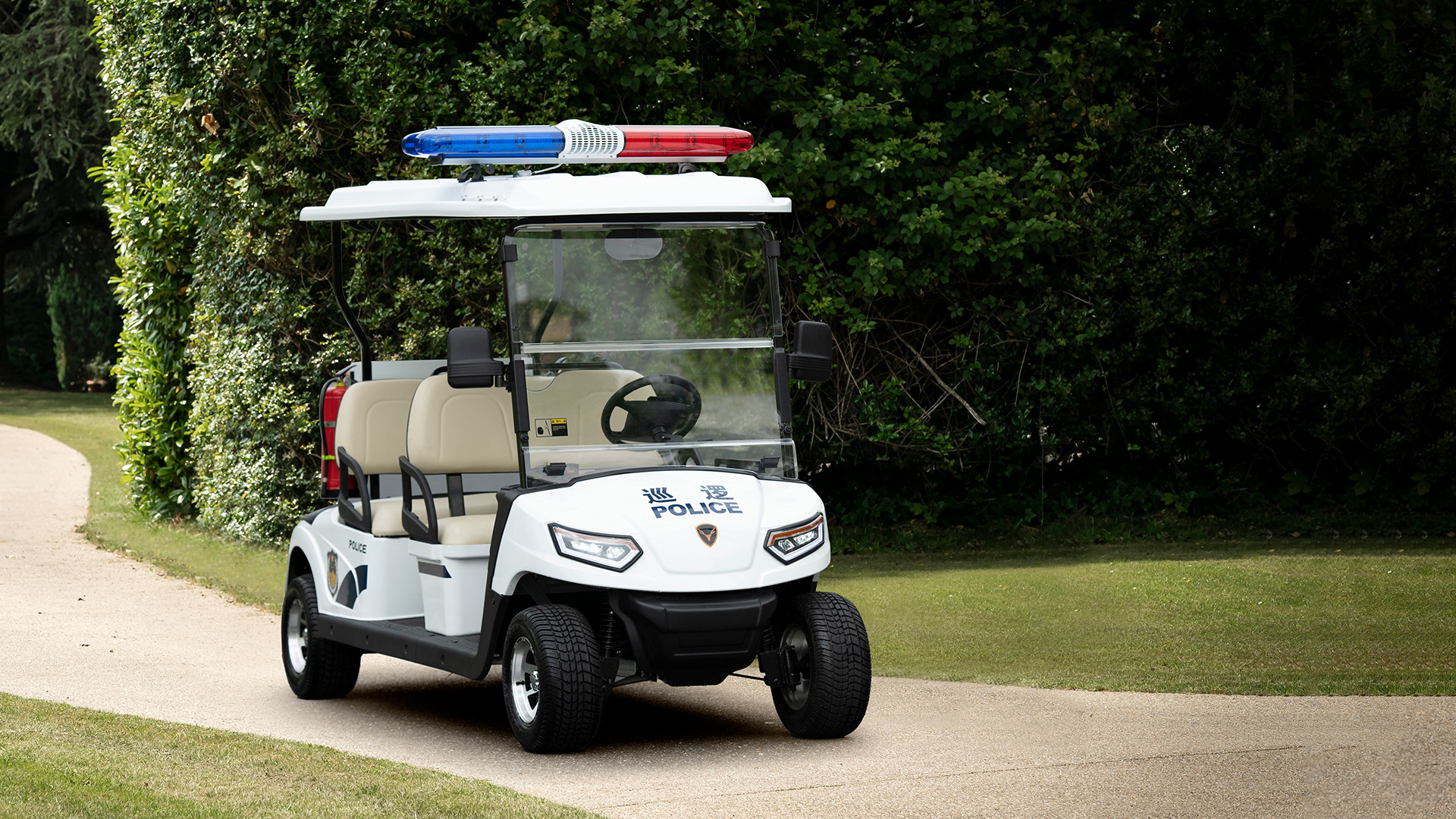

The patrol vehicle boasts long-lasting battery life and powerful performance

Equipped with an on-board charger for instant charging, it handles all kinds of scenarios with ease

It is your reliable assistant for patrol and cargo-carrying tasks

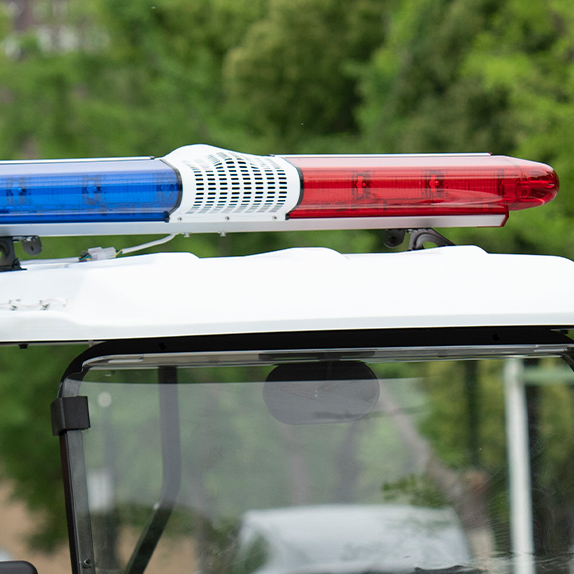

Warning light with high brightness

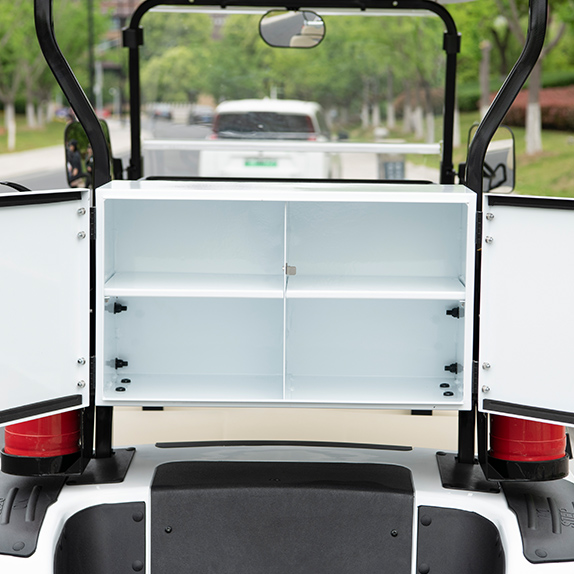

Storage equipment

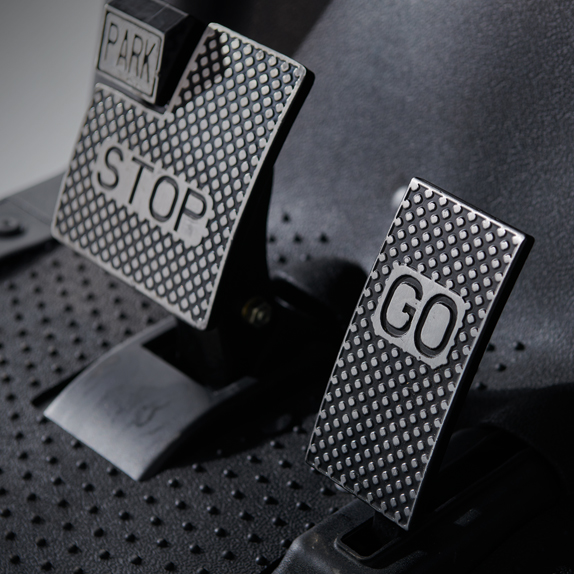

Parking system

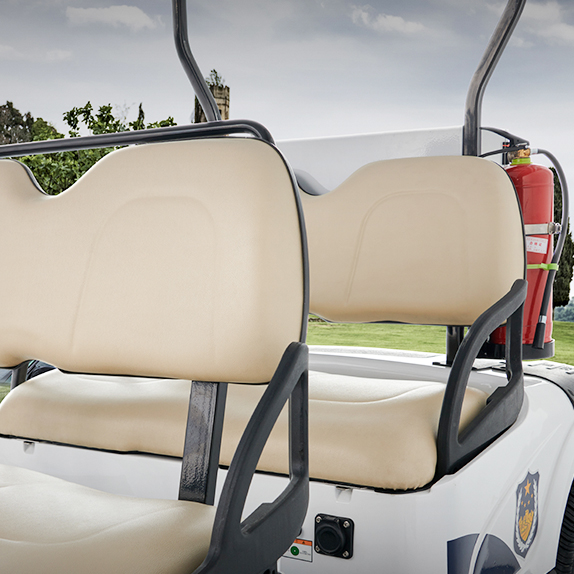

Comfortable 4-Seat Design

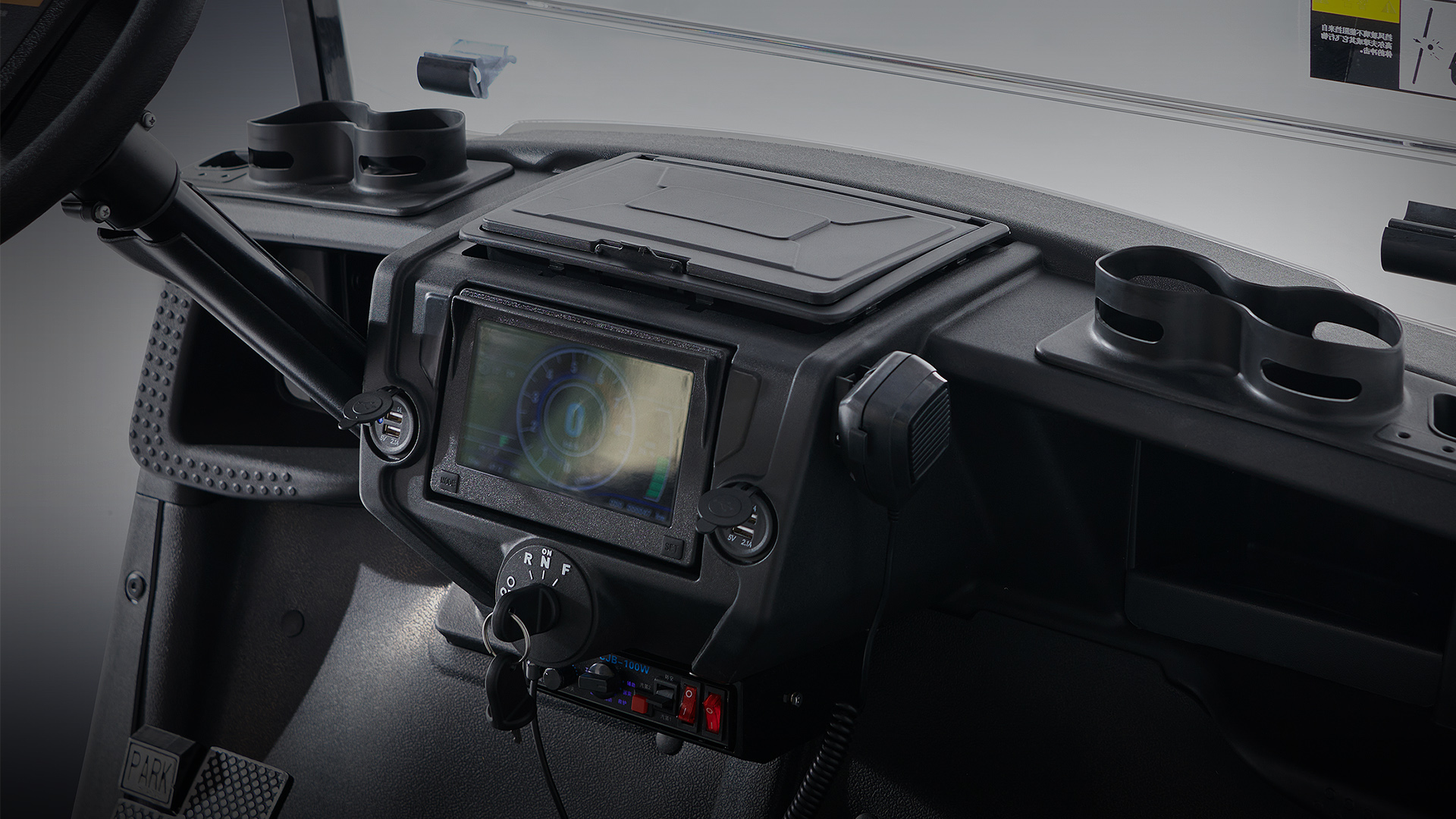

Police calling system

All functions required are available; convenient and efficient emergency rescue.

Turning Radius

Component/Vehicle Testing

Climbing Capacity

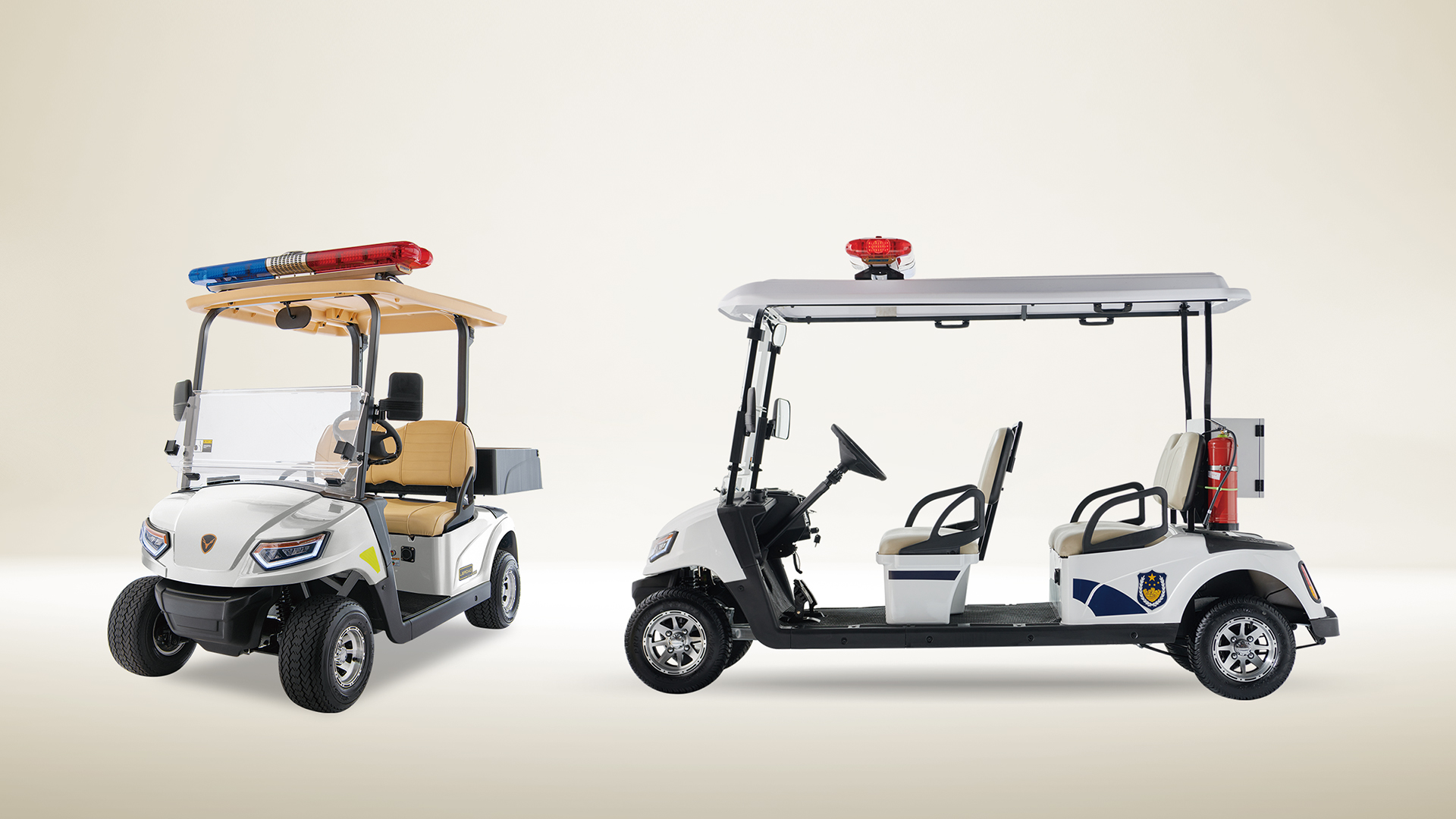

Product Parameter		L2 Patrol car	L4 Patrol car
Load/Size	Length/Width/Height	2425-1180-1960	3190-1190-2000	mm
	Rated Load	200	370	kg
	Curb Weight	350	480	kg
	Number of passengers	2	4	People
	Minimum ground Clearance	120	120	mm
	Wheelbase	1673	2453	mm
	Front/rear axle track	880/970	880/970	mm
	Tyre	18×8.5-8	18×8.5-8
Powertrain	Voltage	48		v
	Motor Type	(4、5)		kw
	Controller	Leroad Controller		A
	Battery	6x8V deep cycle lead-acid batteries/105-160Ah lithium battery		Ah
	Charger	Leroad Charger
Performance	Max speed	8-30 (Optional)		km/h
	Range	80-100		km
	Turning Radius	4000		mm
	Steering system	Bi-directional Push Gear and Rack Steering Box
	Front suspension	Macpherson Independent Suspension
	Rear suspension	Plate Spring of Variable Cross-section and Damper
	Braking system	Rear Wheel Mechanical Brake and Service Brake System
	Braking distance	≤ 3500		mm
Vehicle Color	Standard Body Color	Black, White, Ivory, Turquoise, Wormwood Green,
		Forest Green, Sky Blue, Electric Blue,
		Golden Deer Color, Dior Red

	Standard Seat Color	Beige
