Low-carbon
Efficient and Convenient for Multi-Scenario Applications
Driving speed
endurance
turning radius
braking distance

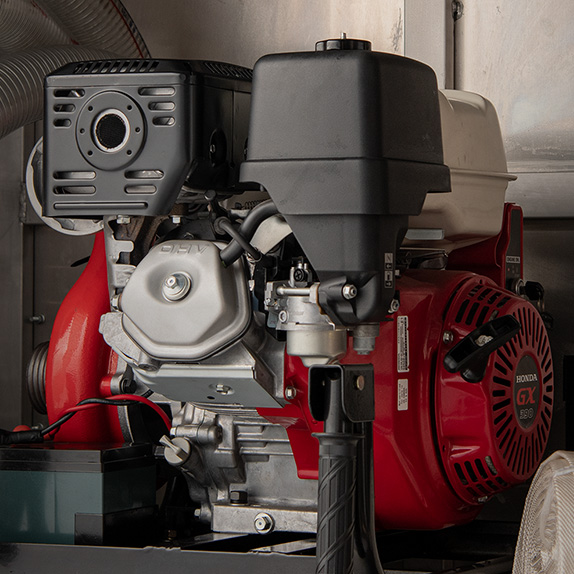

Fire extinguisher, gas mask, fire protection clip, fire protection shovel, high-pressure water pump of gasoline engine, etc. Quick and professional response based on realities
One cap for one bolt for 3,000+ vehicle parts to ensure operation precision
Compact Size, Versatile Function

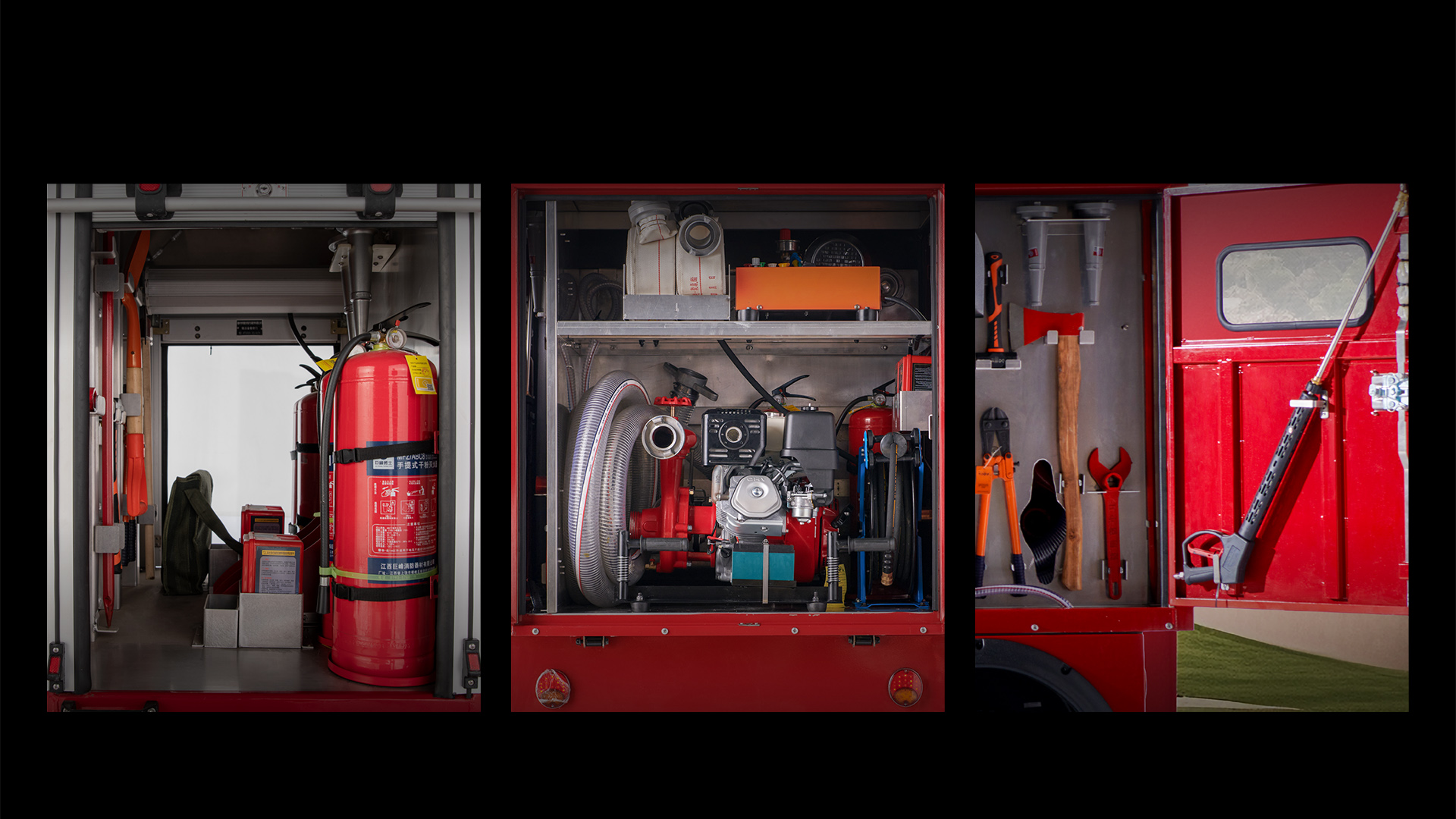

The Vehicle Is Equipped with a Fire Extinguisher and Various Other Tools
Swift and Professional Response to Various Situations
Parking system

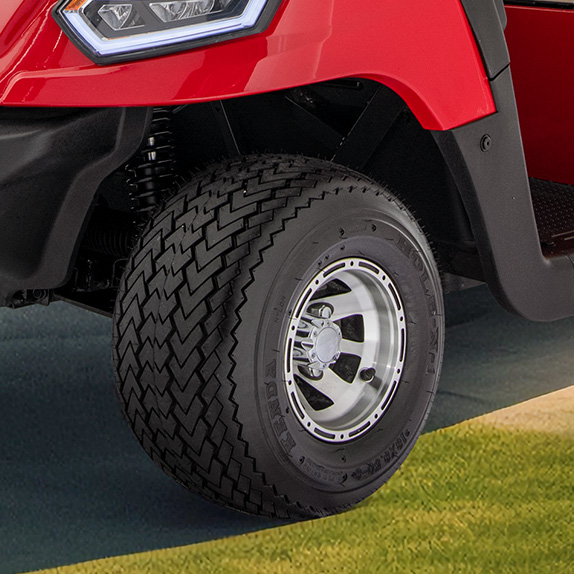

Wear-resistant tyre
Police calling system

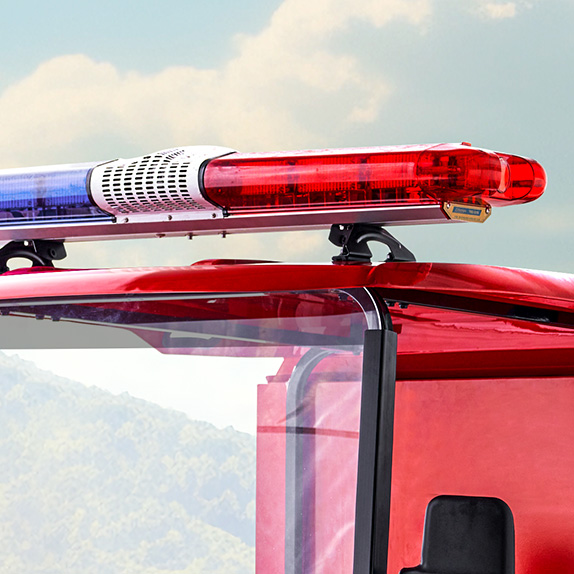

Warning light with high brightness
Comprehensive Fire-Fighting Configuration
Equipped with Full-Fledged Functions for Convenient and Efficient Emergency Rescue
Turning Radius
Component/Vehicle Testing
Climbing Capacity
|
||||
| Product Parameter | Firefighting Car（without water tank） | Firefighting Car（with water tank） | ||
| Load/Size | Length/Width/Height | 3260-1210-1920（With Lights） | mm | |
| Rated Load | 170 | kg | ||
| Curb Weight | 840 | kg | ||
| Number of passengers | 2 | People | ||
| Minimum ground Clearance | 120 | mm | ||
| Wheelbase | 2465 |
mm |
||
| Front/rear axle track |
880/960 |
mm |
||
| Tyre | 18×8.5-8 205/50-10 | |||
| Powertrain | Voltage |
48 |
v | |
| Motor Type | (4、5) | kw | ||
| Controller | Leroad Controller |
A |
||
| Battery | 6x8V deep cycle lead-acid batteries/105-160Ah lithium battery | Ah | ||
| Charger | Leroad Charger | |||
| Performance | Max speed | 8-30 (Optional) | km/h | |
| Range | 80-100 | km | ||
| Turning Radius | 4000 | mm | ||
| Steering system | Bi-directional Push Gear and Rack Steering Box | |||
| Front suspension | Macpherson Independent Suspension | |||
| Rear suspension | Plate Spring of Variable Cross-section and Damper | |||
| Braking system | Rear Wheel Mechanical Brake and Service Brake System | |||
| Braking distance | ≤ 3500 | mm | ||
| Vehicle Color | Standard Body Color | Fire Red | ||
| Standard Seat Color | Beige | |||
|
Fire-Fighting Configuration |
Equipment / Gear | Fire extinguisher, gas mask, fire protection clip, fire protection shovel, fire axe, fire hammer, fire hydrant wrench, door breaker, gasoline engine high-pressure water pump. | 550L ultra-large water tank, high-pressure water gun, fire extinguisher, gas mask, fire protection clip, fire protection shovel, fire axe, fire hammer, fire hydrant wrench, door breaker, high-pressure water pump of gasoline engine and electric high-pressure water pump. | |
