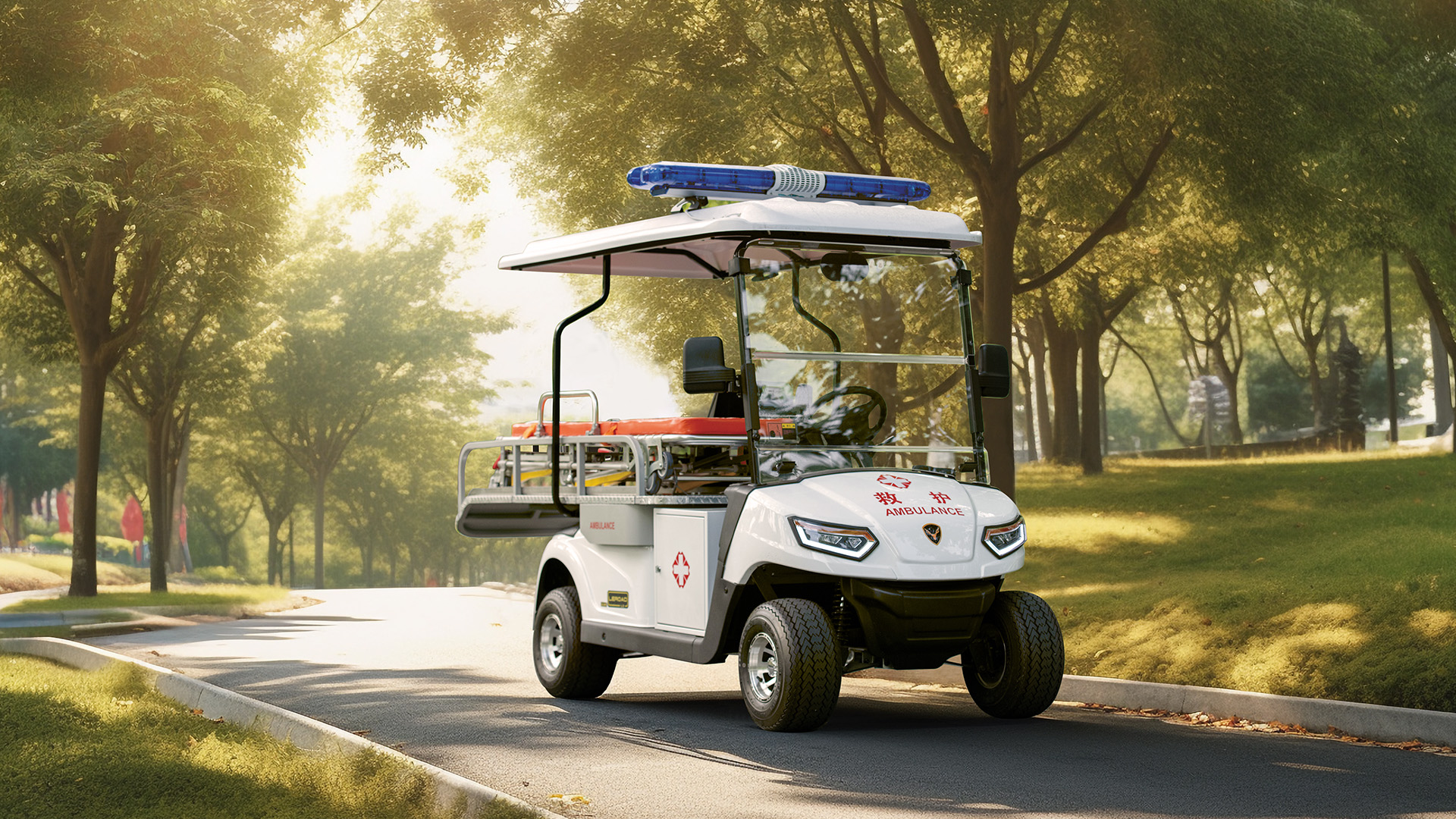

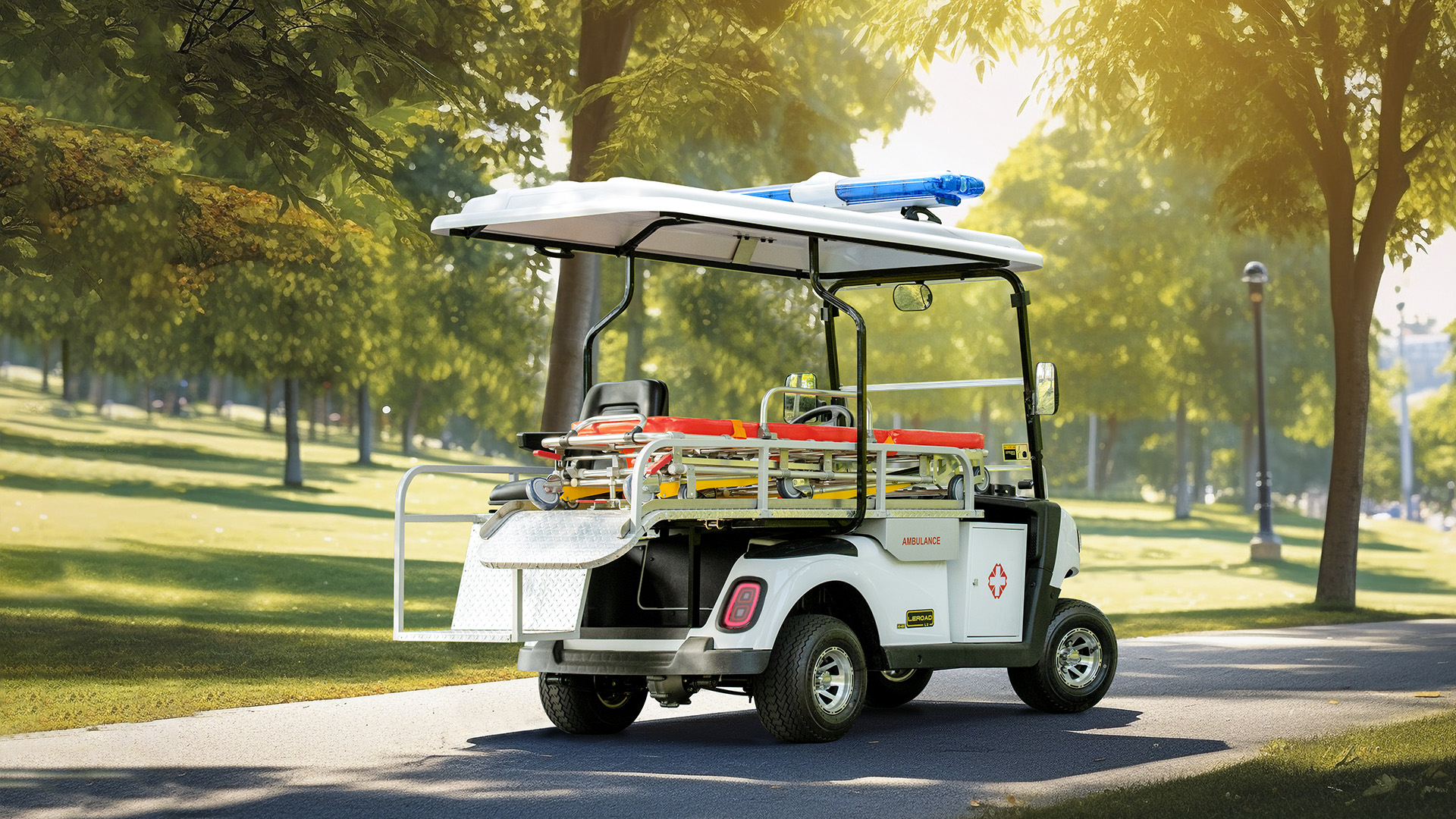

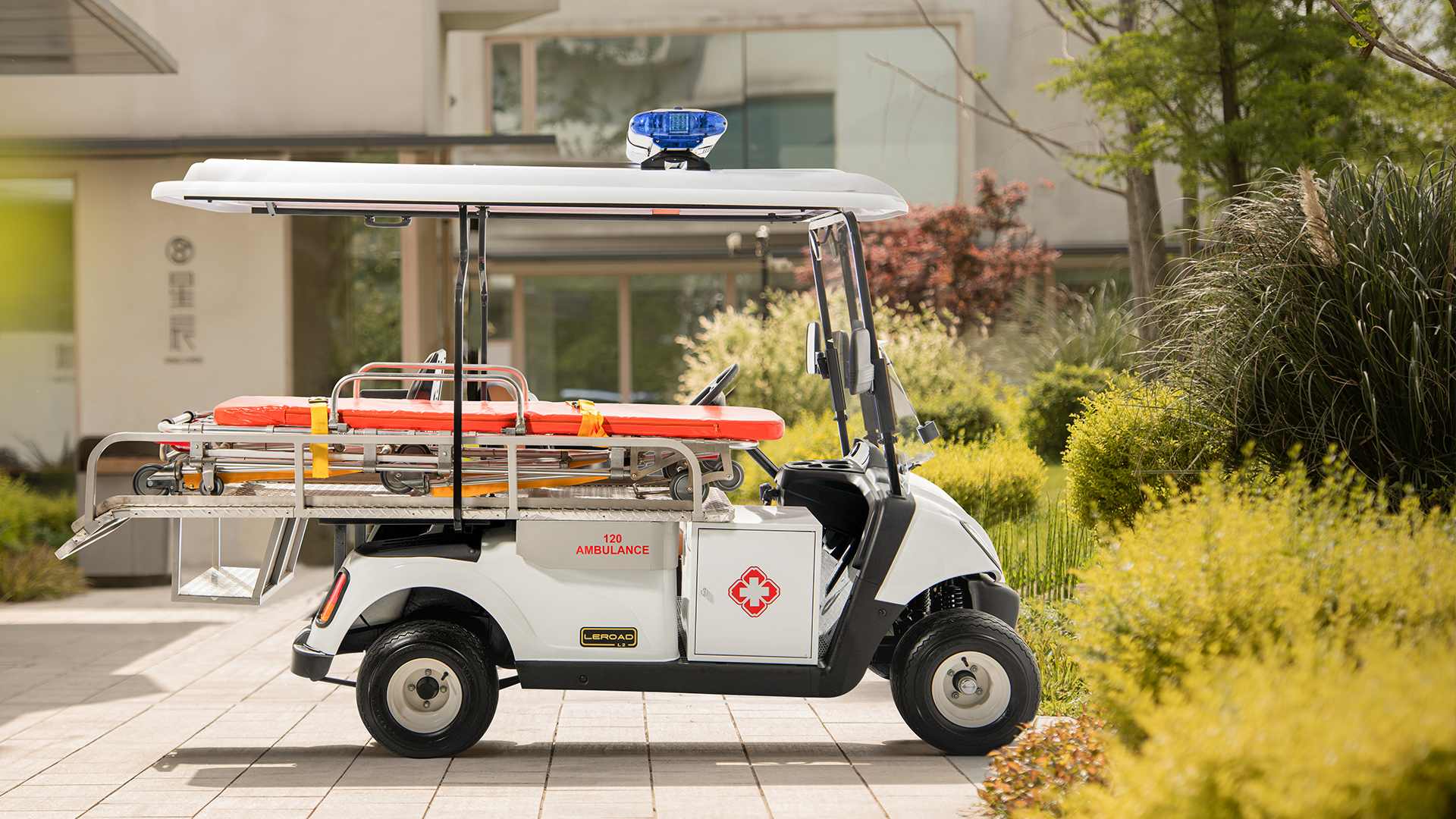

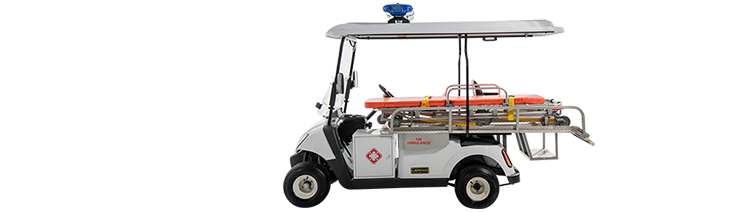

Leroad Ambulance

Sensitive maneuvering
Professional rescue

Low-carbon

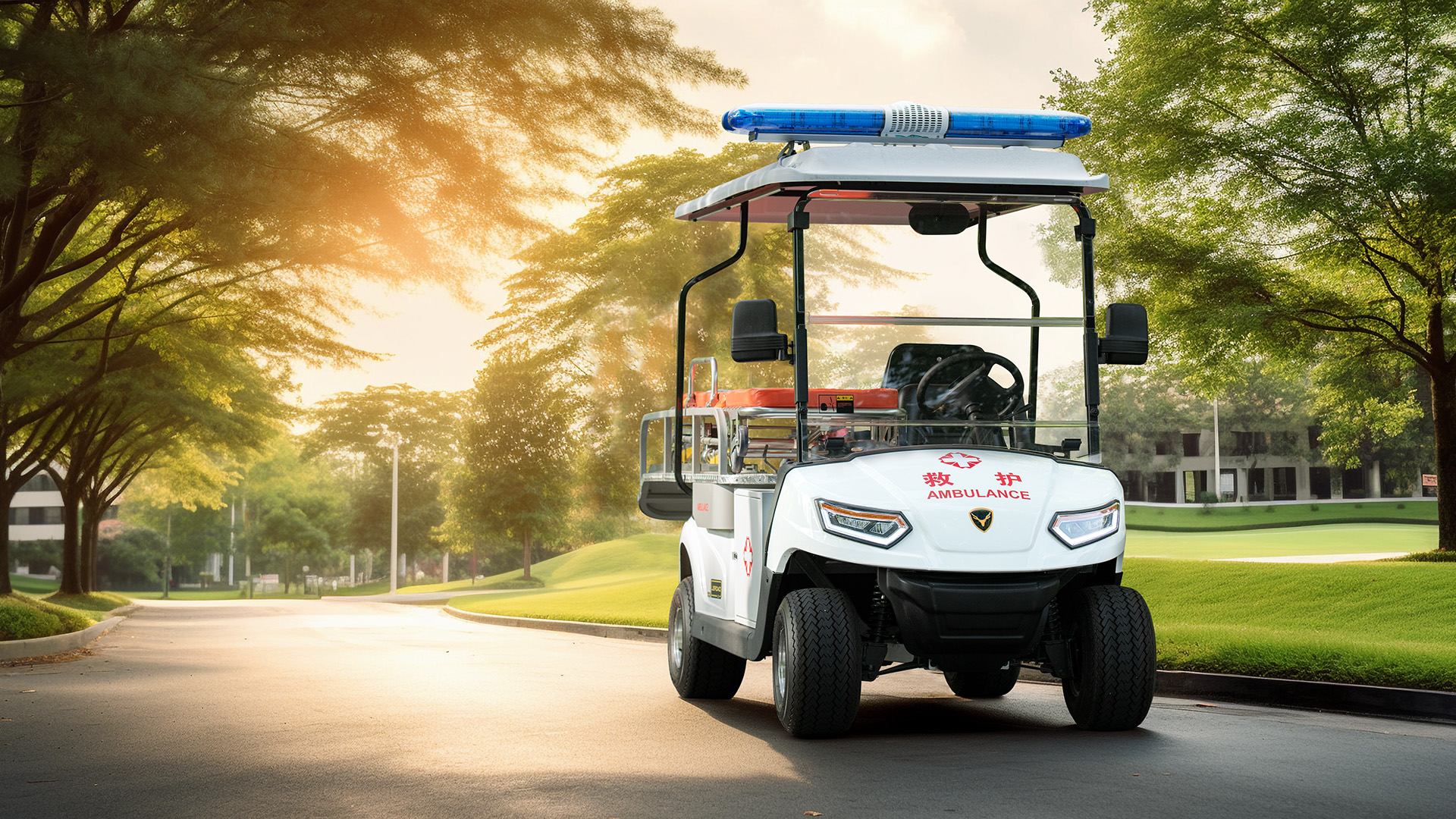

Efficient and Convenient for Multi-Scenario Applications

Driving speed

8-30KM

endurance

8-100KM

turning radius

2900MM

braking distance

≤3500MM

Complete functions, small and convenient

Wider and longer stretcher with humanistic design and more comfortable pad. The police call system ensures timely response and high efficiency.Ambulance box, which ensures life safety.

High quality

One cap for one bolt for 3,000+ vehicle parts to ensure operation precision

Details Determine Success or Failure

Complete functions, small and convenient

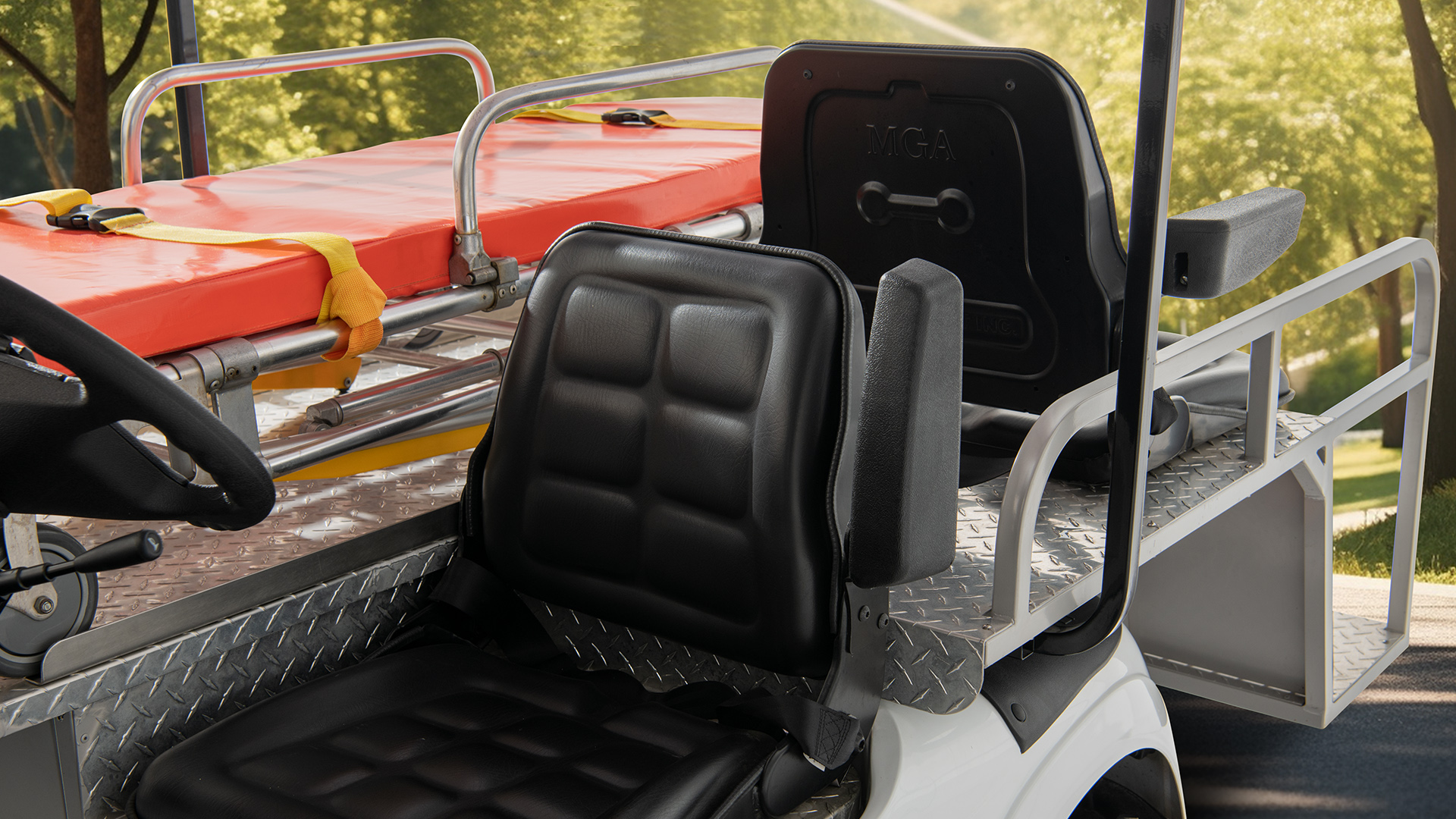

Wider and longer stretcher with humanistic design and more comfortable pad.

Ambulance box, which ensures life safety.

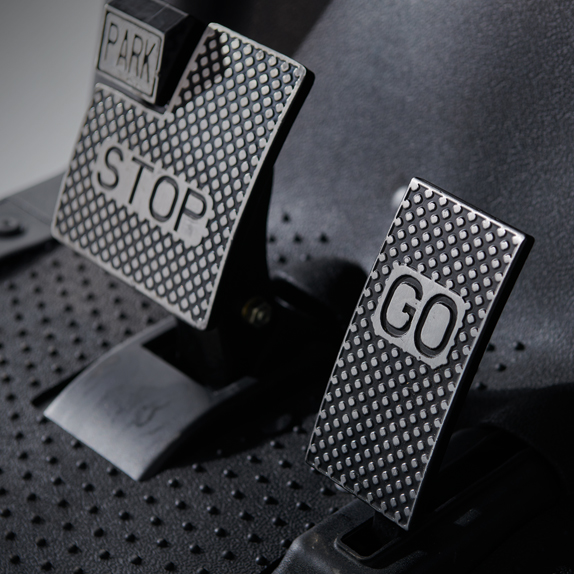

Parking system

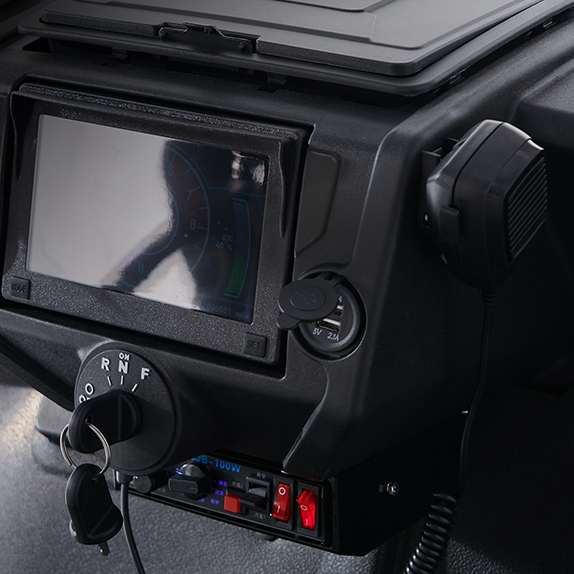

Police calling system

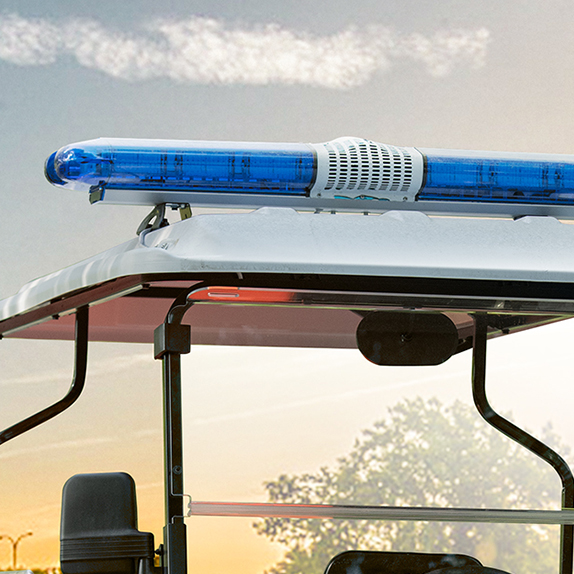

Warning light with high brightness

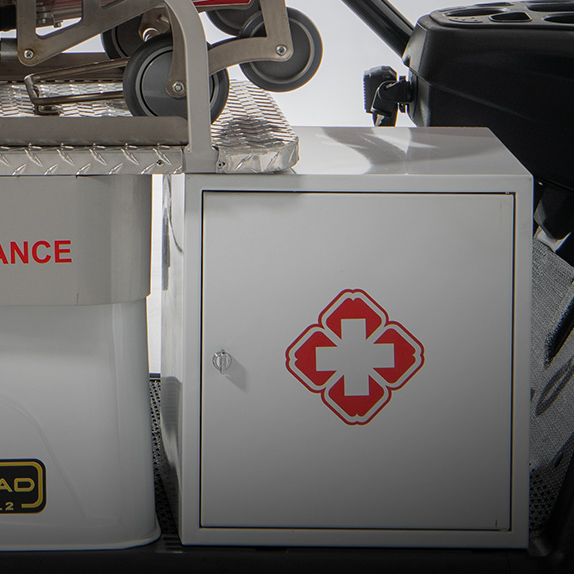

First aid box

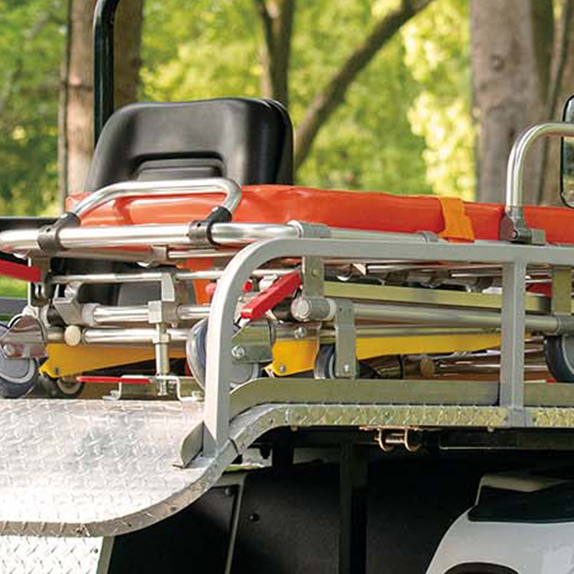

Medical Stretcher

Police calling system Worry-Free Travel

Equipped with Full-Fledged Functions for Convenient and Efficient Emergency Rescue

Turning Radius

2.9M

Component/Vehicle Testing

100%

Climbing Capacity

25%

Craftsmanship Quality

Choose Your Ambulance


Product Parameter		Ambulance
Load/Size	Length/Width/Height	3065-1280-2000(With Lights)	mm
	Rated Load	260	kg
	Curb Weight	600	kg
	Number of passengers	2	People
	Minimum ground Clearance	120	mm
	Wheelbase	1673	mm
	Front/rear axle track	880/960	mm
	Tyre	18×8.5-8 205/50-10
Powertrain	Voltage	48	v
	Motor Type	(4、5)	kw
	Controller	Leroad Controller	A
	Battery	6x8V deep cycle lead-acid batteries/105-160Ah lithium battery	Ah
	Charger	Leroad Charger
Performance	Max speed	8-30 (Optional)	km/h
	Range	80-100	km
	Turning Radius	2900	mm

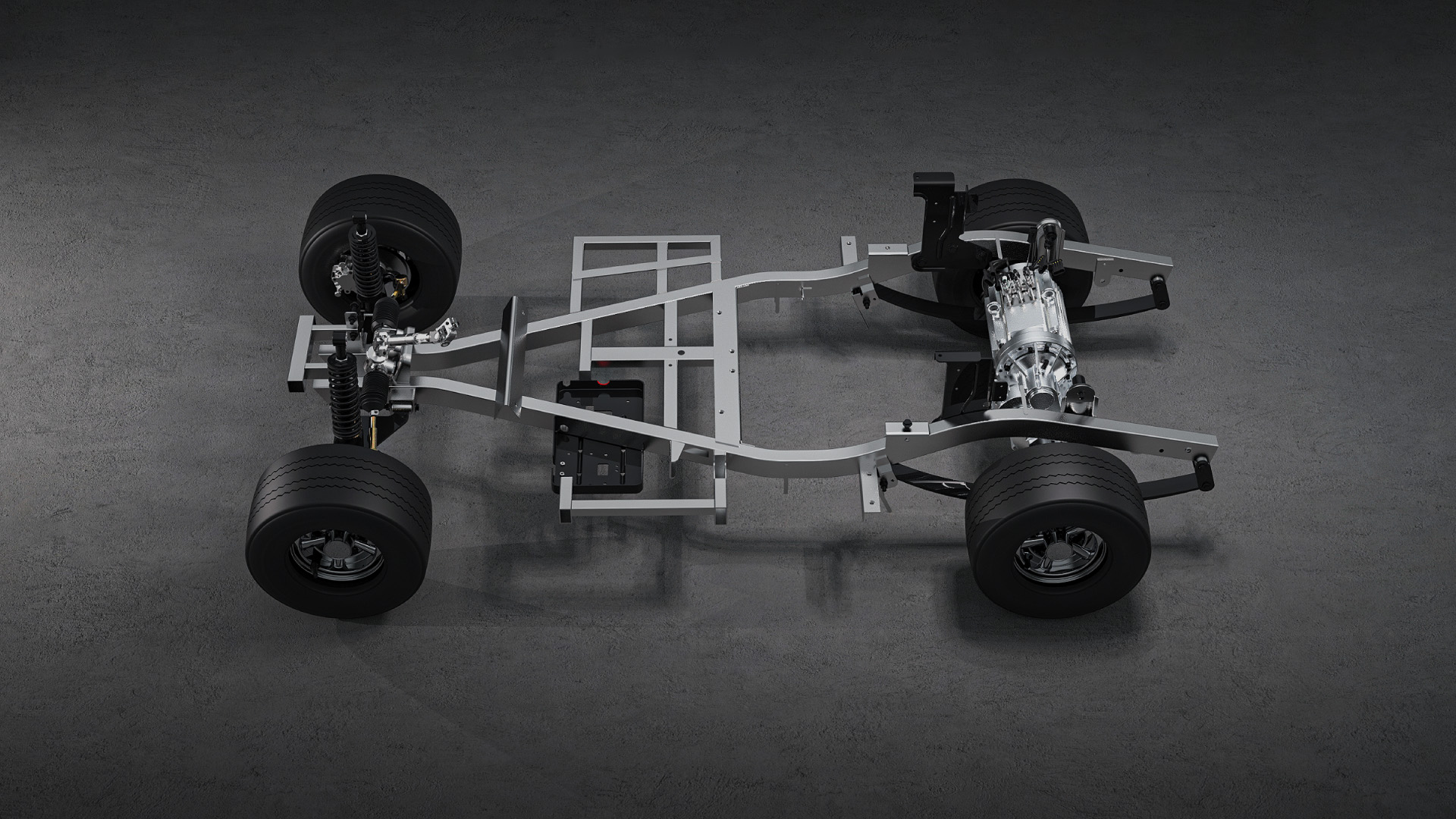

	Steering system	Bi-directional Push Gear and Rack Steering Box
	Front suspension	Macpherson Independent Suspension
	Rear suspension	Plate Spring of Variable Cross-section and Damper
	Braking system	Rear Wheel Mechanical Brake and Service Brake System
	Braking distance	≤ 3500	mm
Vehicle Color	Standard Body Color	White


	Standard Seat Color	Beige
