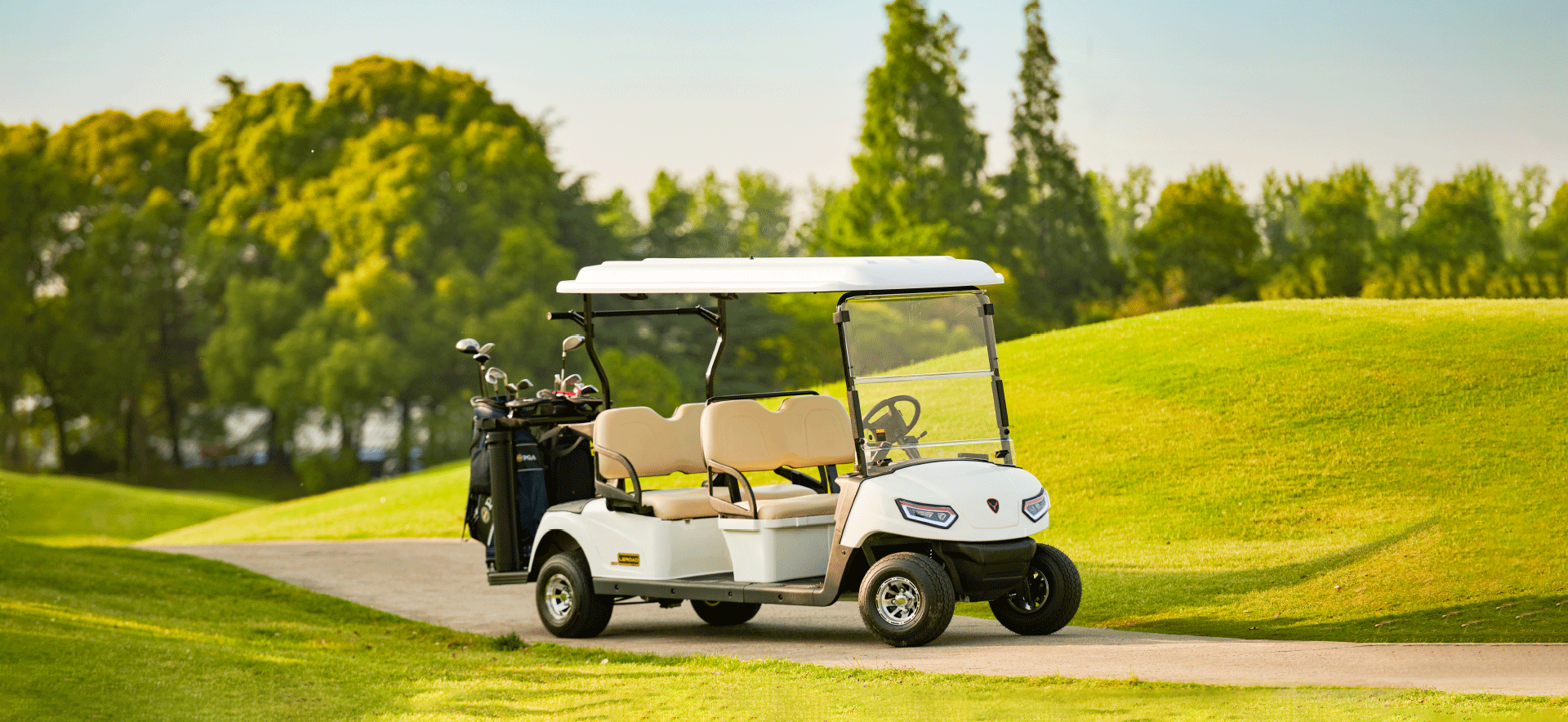

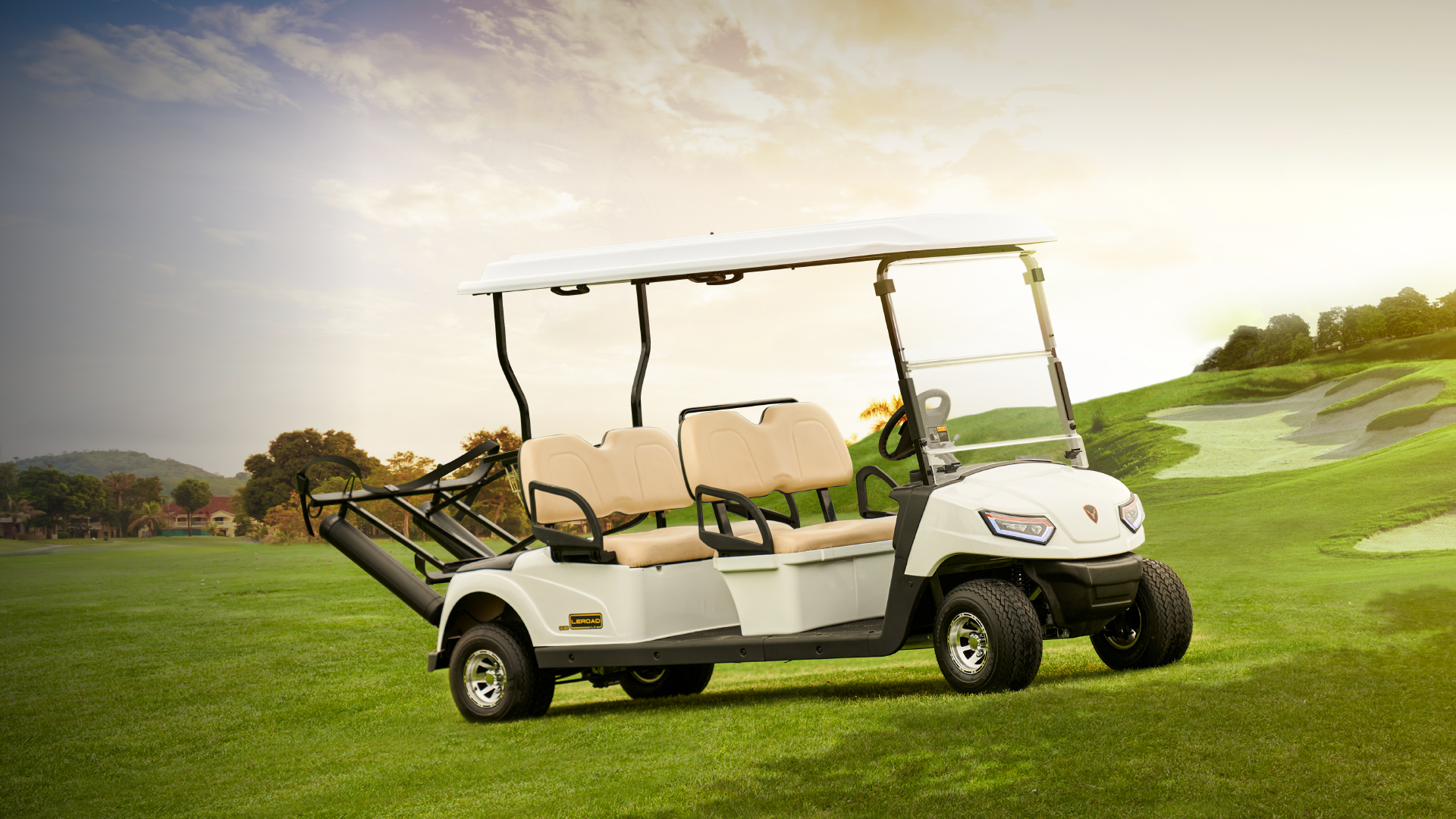

Leroad L4

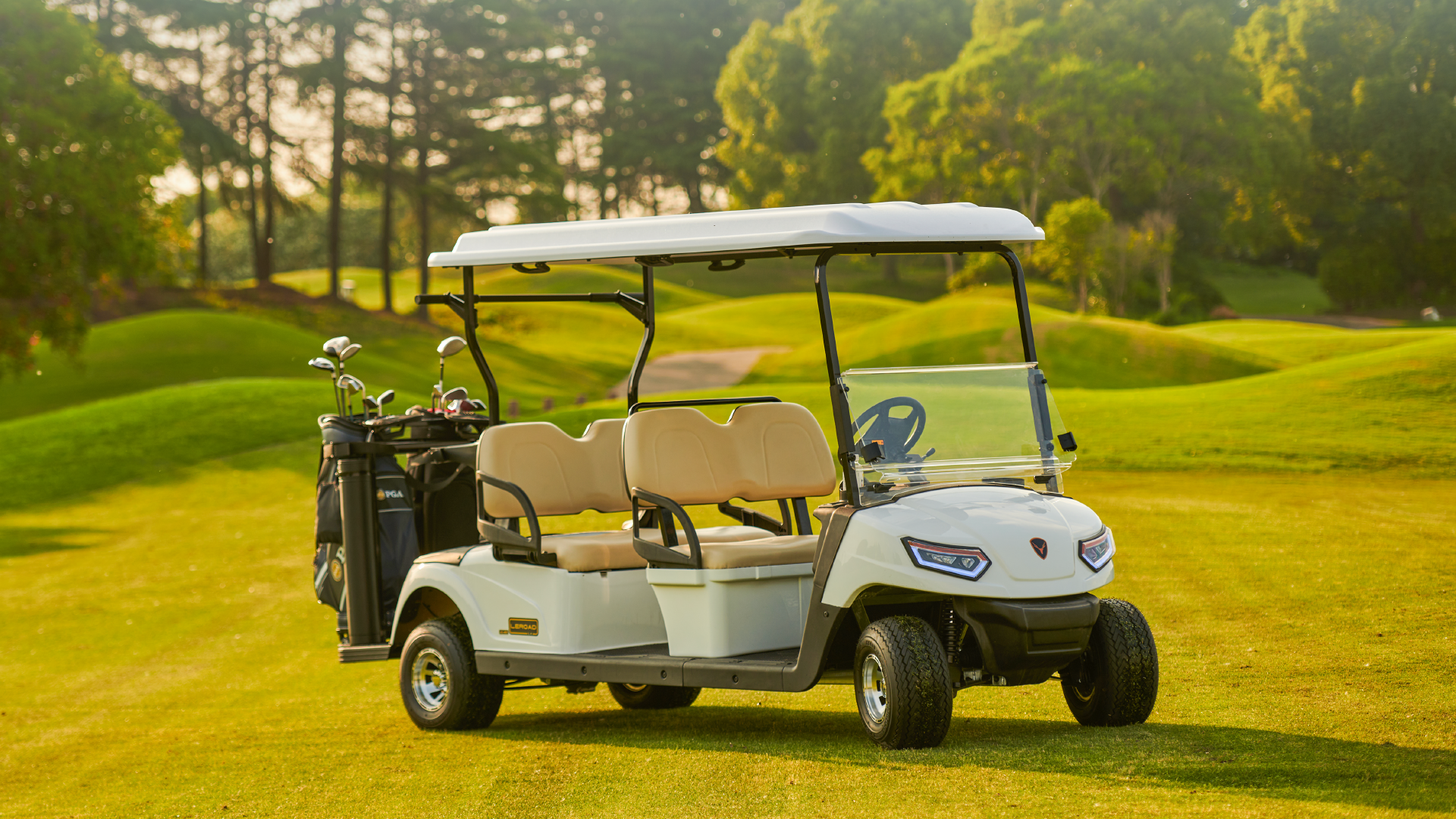

Inherits the Classic Exterior Design
Displays the Beautiful Silhouette in 360 Degrees

Driving speed

Driving speed

turning radius

braking distance

Leading appearance design, making it special and different in court

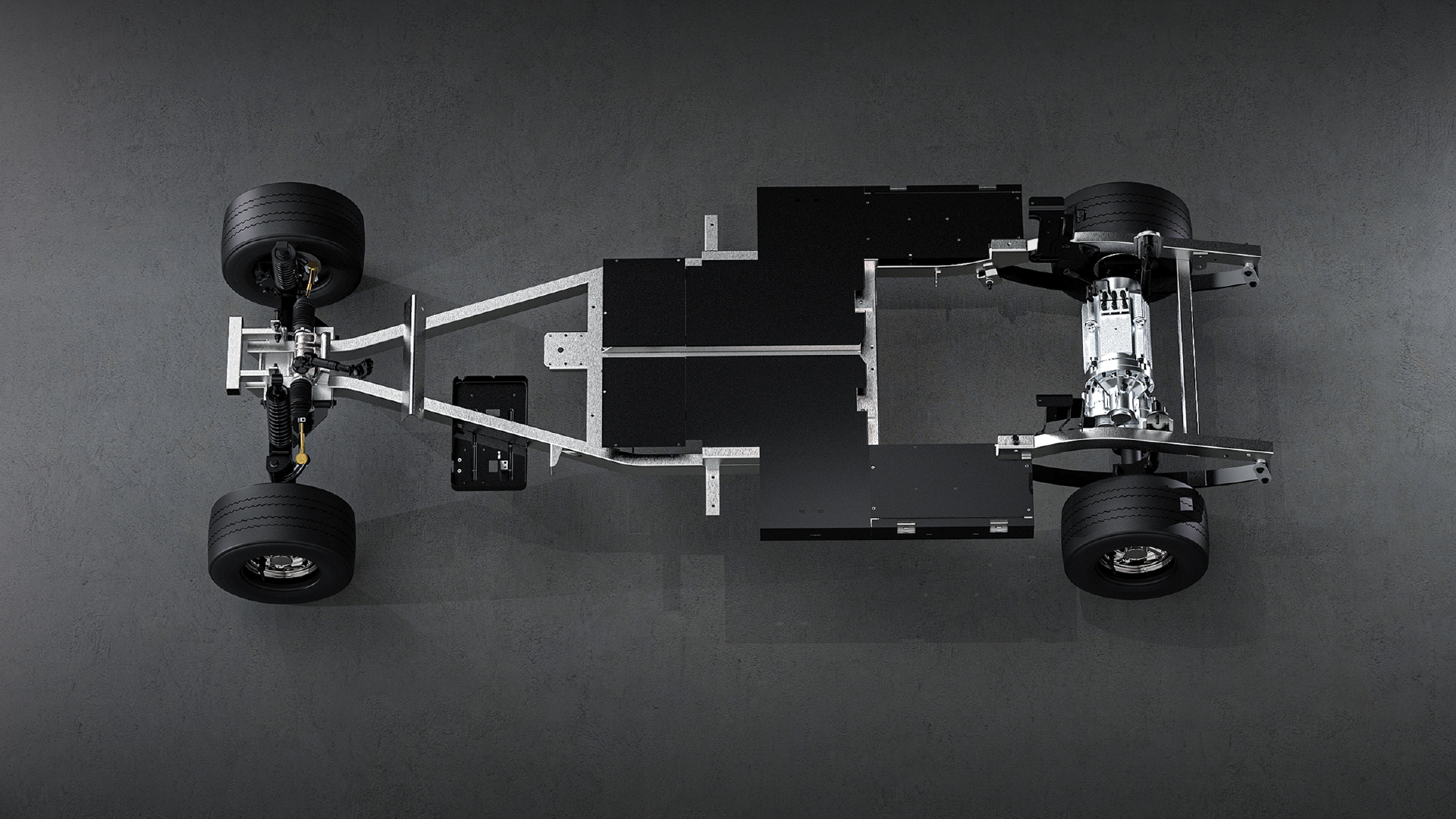

One cap for one bolt for 3,000+ vehicle parts to ensure operation precision

Every detail of the L4 has been analyzed

by professional users and a team of passionate automotive engineers

and designers to deliver a reliable golf cart for you.

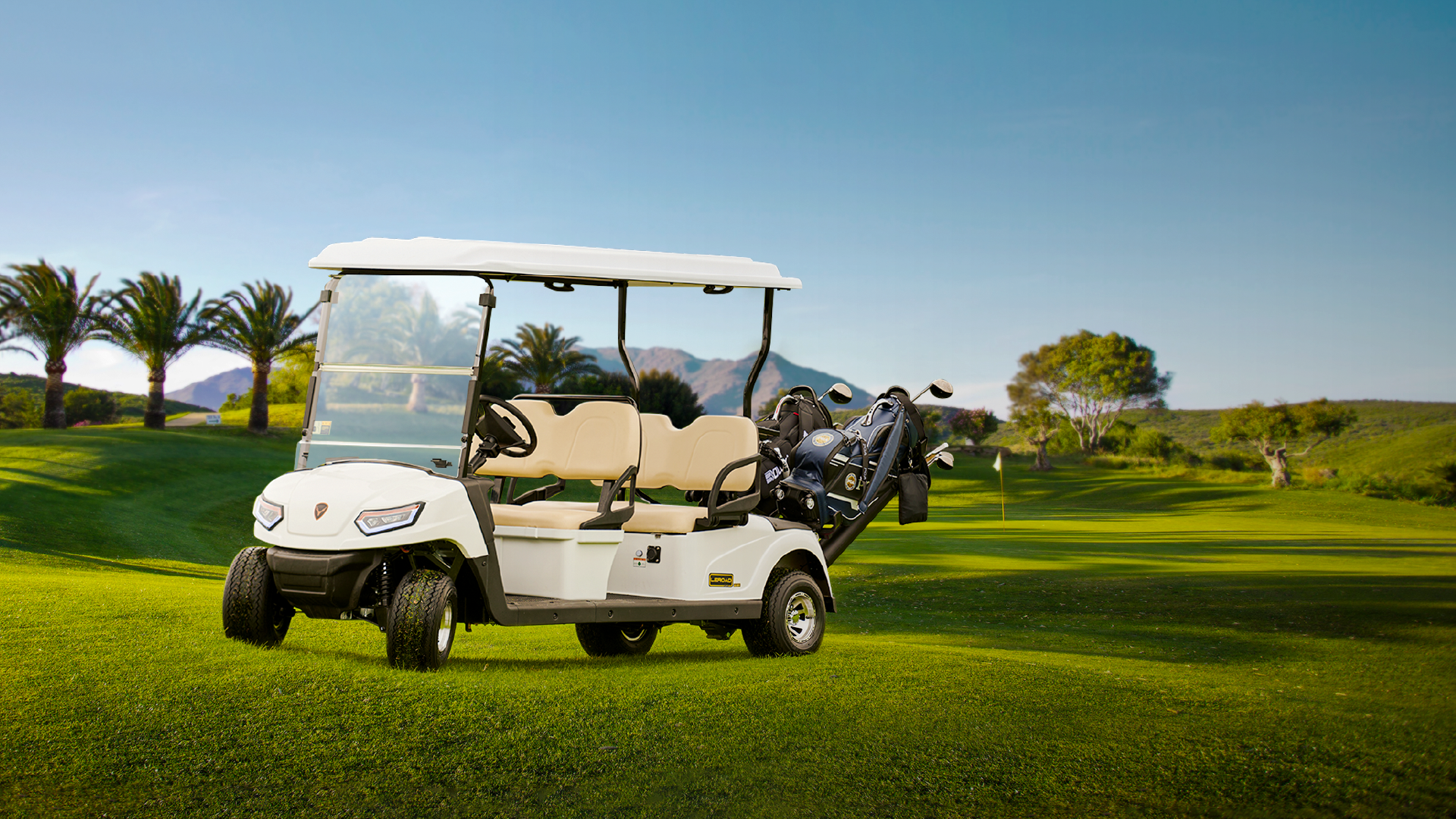

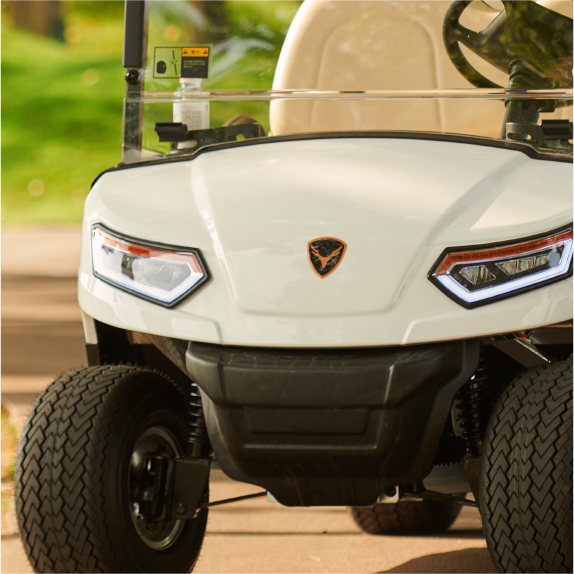

Front fascia design

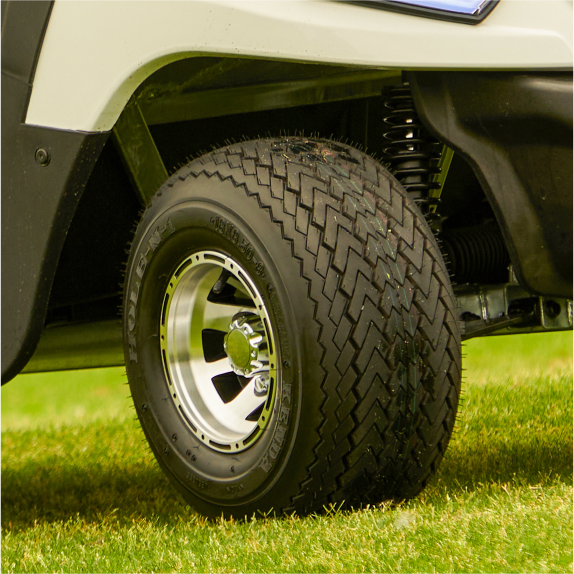

Macphersan independent suspension

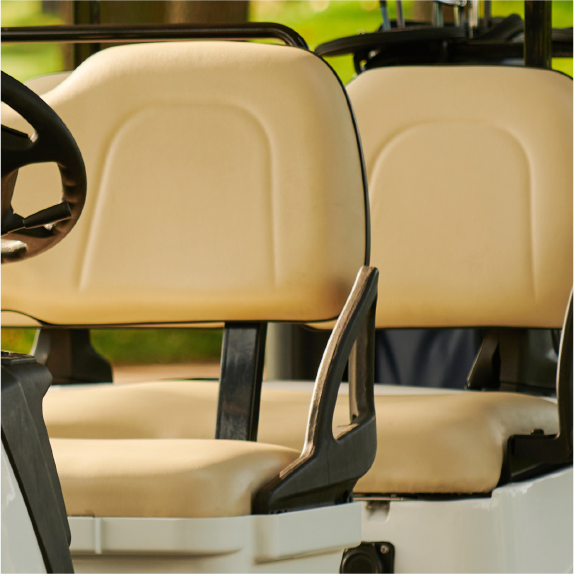

Widened seat design

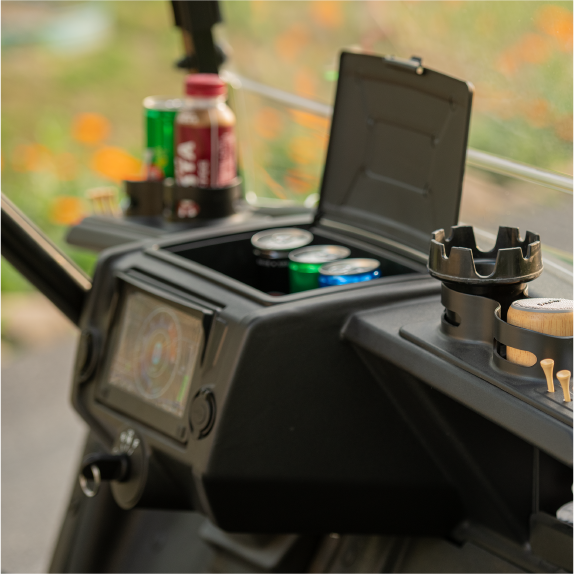

Dashboard Design

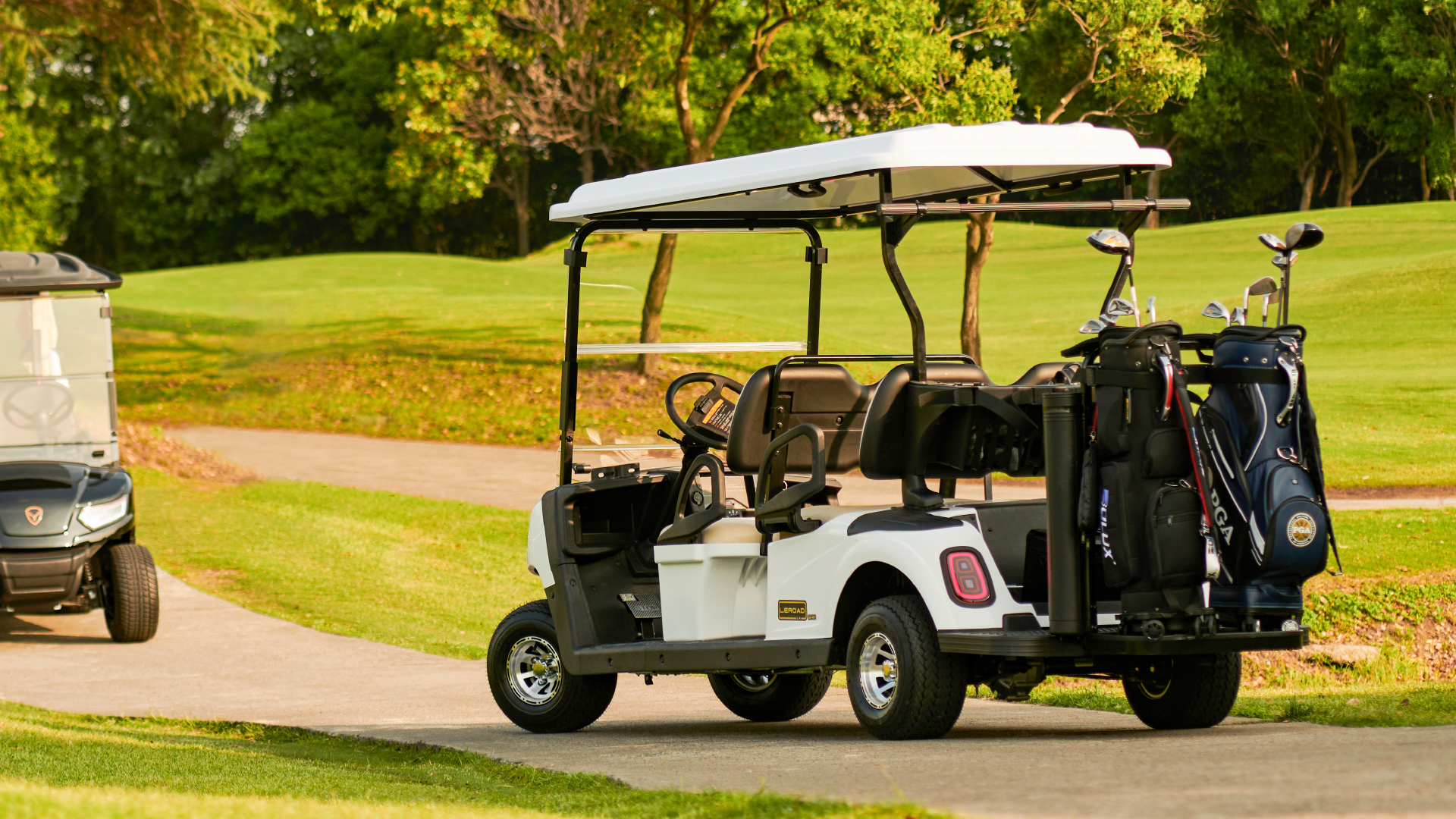

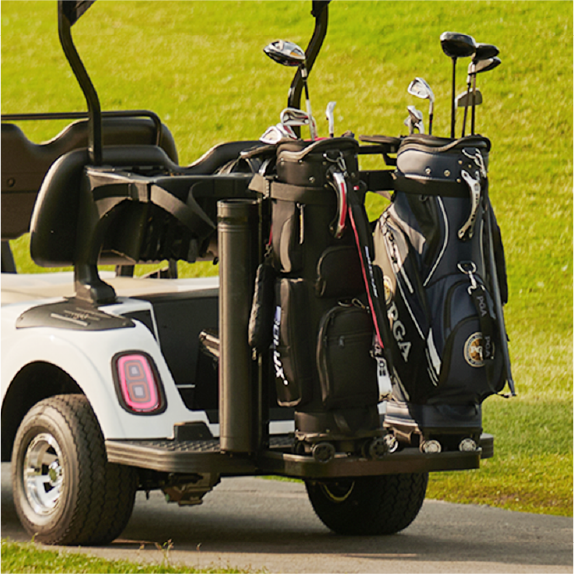

club barrel

The product is fitted with exceptional power system, which contributes to stable and joyful driving experience

Turning Radius

Component/Vehicle Testing

Climbing Capacity

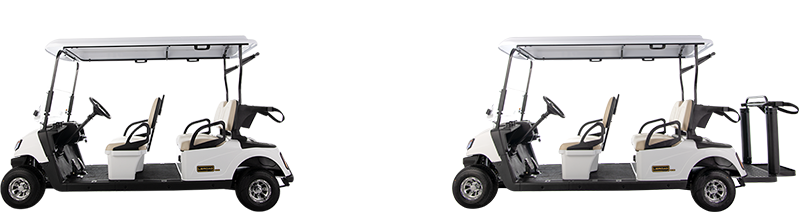

Product Parameter		L4 Standard	L4 Upright Club Holder
Load/Size	Length/Width/Height	3190-1190-1900	3190-1190-1900	mm
	Rated Load	370	500	kg
	Curb Weight(Lithium battery)	448	468	kg
	Number of passengers	4	4	People
	Minimum ground Clearance	120	120	mm
	Wheelbase	2453	2453	mm
	Front/rear axle track	880/970	880/970	mm
	Tyre	18✖8.8-8	18✖8.8-8
Powertrain	Voltage	48		v
	Motor Type	(4、5)		kw
	Controller	Leroad Controller		A
	Battery	6x8V deep cycle lead-acid batteries/105-160Ah lithium battery		Ah
	Charger	Leroad Charger
Performance	Max speed	8-30 (Optional)		km/h
	Range	80-100		km
	Turning Radius	4000		mm
	Steering system	Bi-directional Push Gear and Rack Steering Box
	Front suspension	Macpherson Independent Suspension
	Rear suspension	Plate Spring of Variable Cross-section and Damper
	Braking system	Rear Wheel Mechanical Brake and Service Brake System
	Braking distance	≤ 3400		mm
Vehicle Color	Standard Body Color	Black, White, Ivory, Turquoise, Wormwood Green,
		Forest Green, Sky Blue, Electric Blue,
		Golden Deer Color, Dior Red
	Standard Seat Color	Beige
