Leroad L2+2

Flexible configuration
Wide range of application scenarios

Driving speed

endurance

turning radius

braking distance

Leading appearance design, making it special and different in court

One cap for one bolt for 3,000+ vehicle parts to ensure operation precision

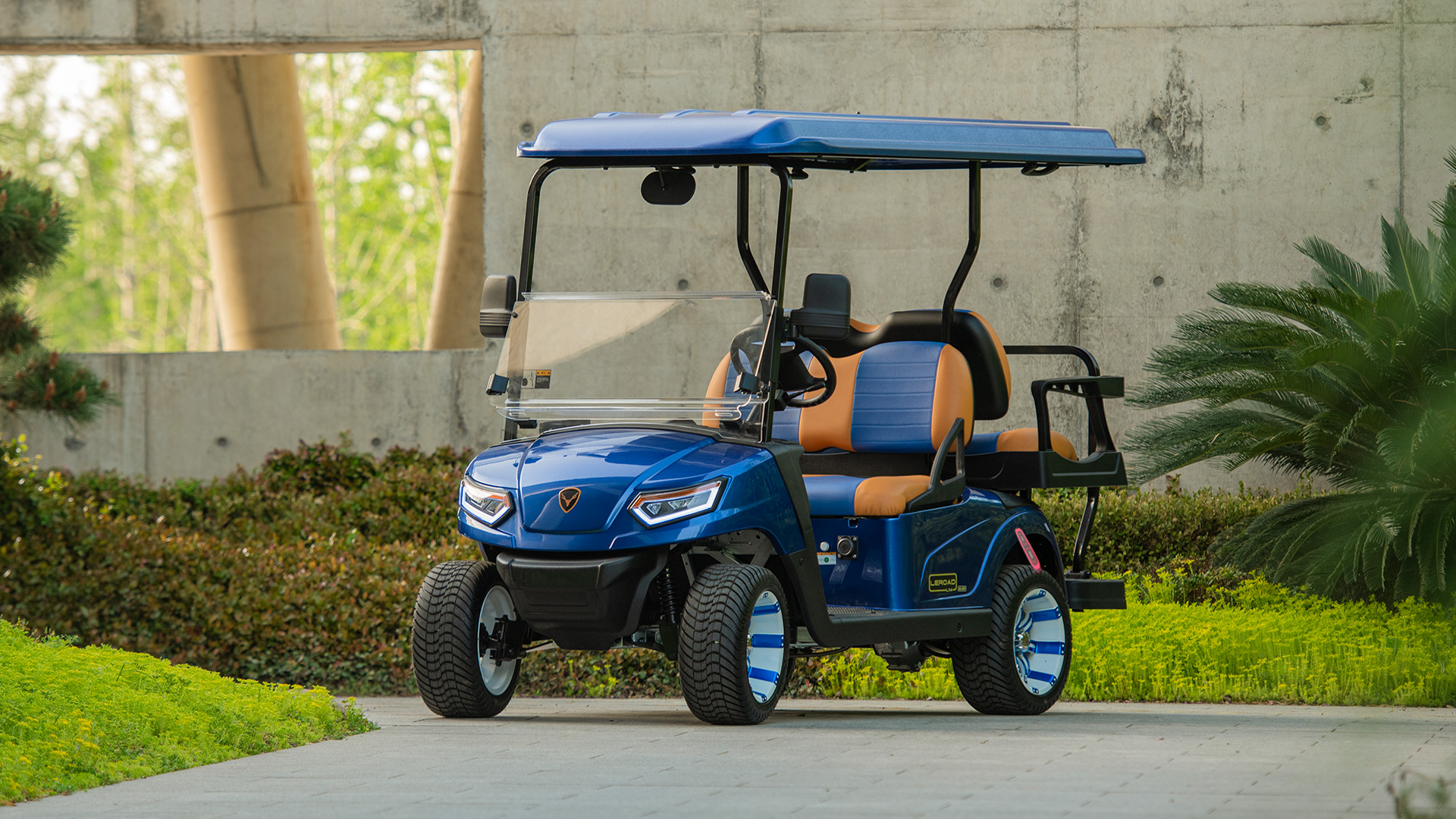

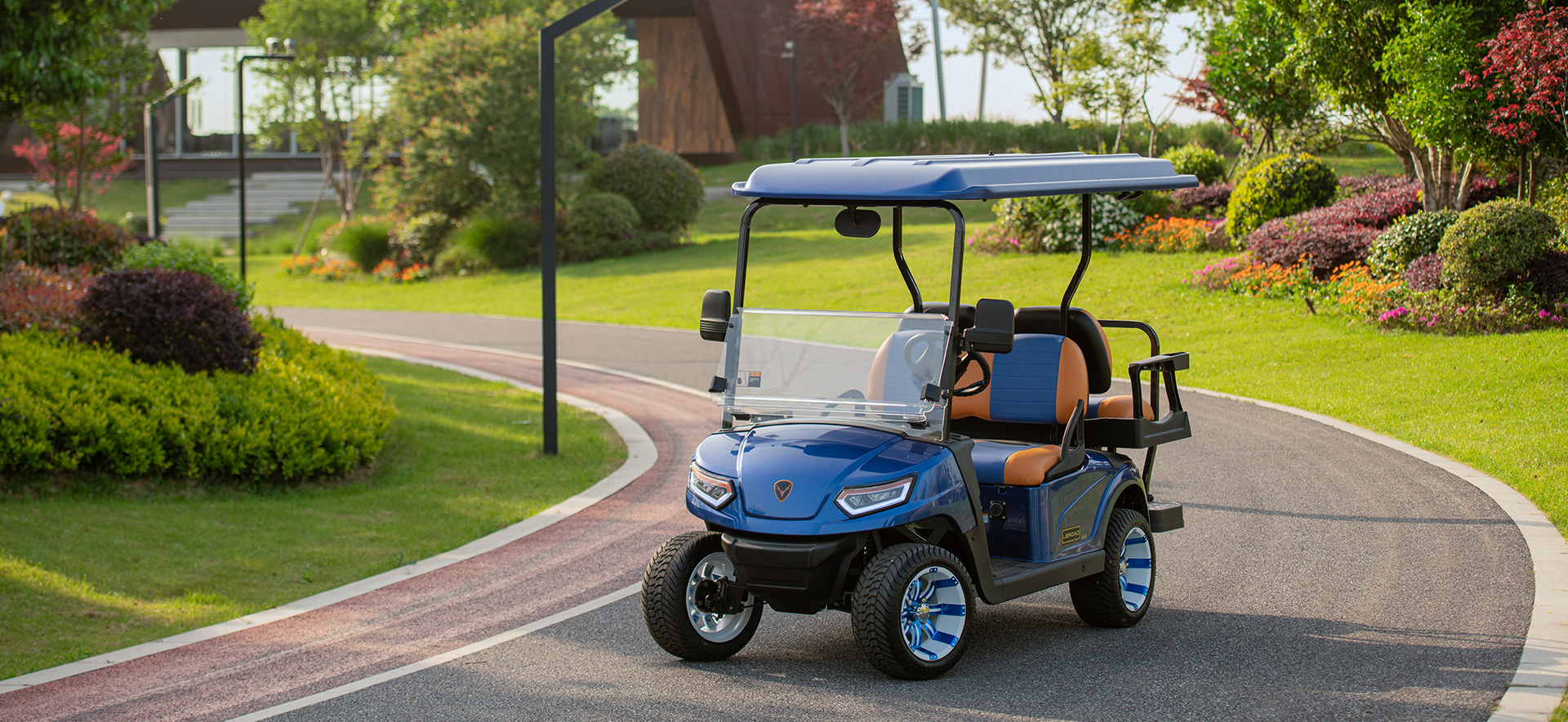

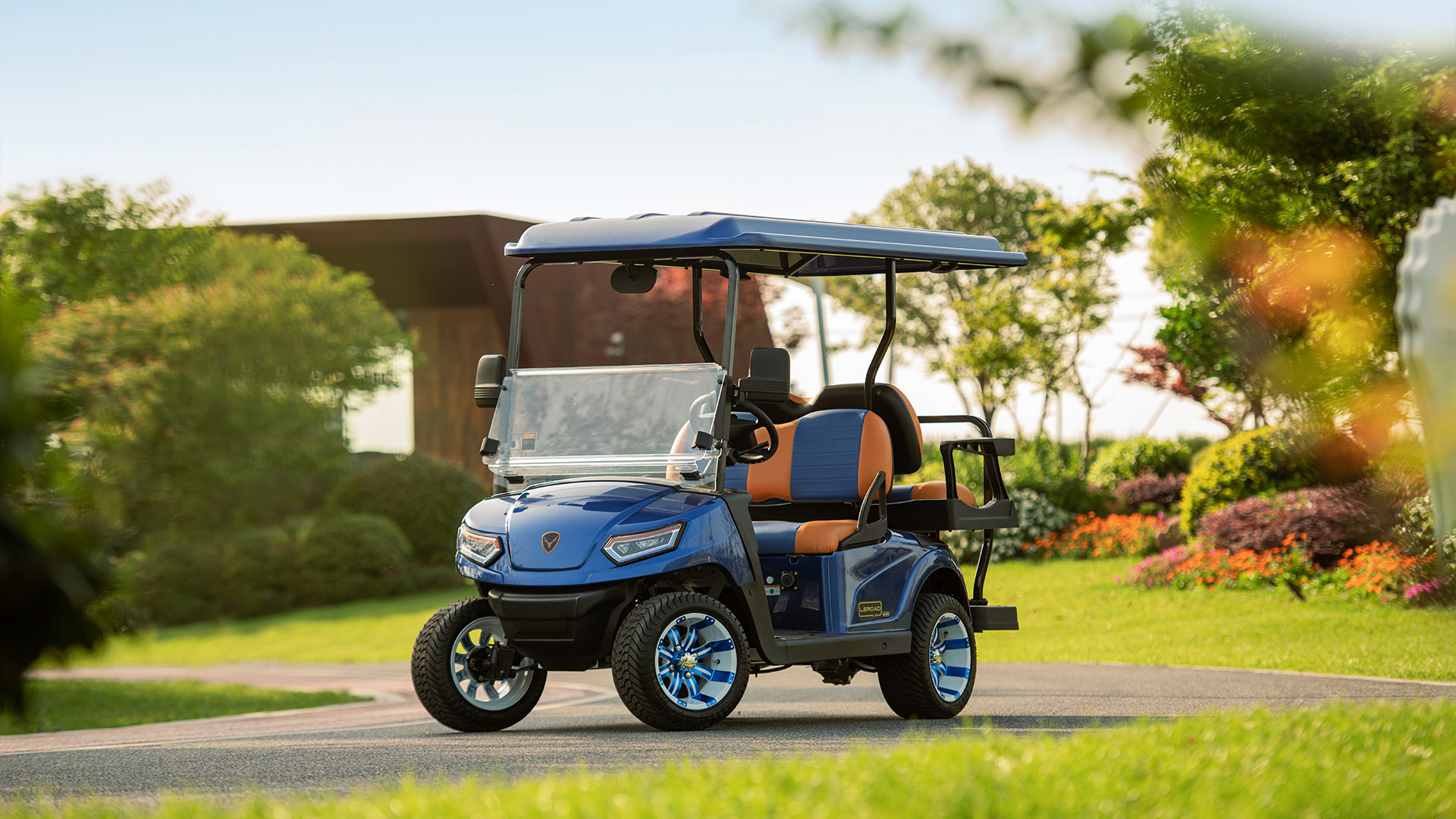

The L+2 Series has become a popular choice on golf courses by virtue of its superior and stable

performance, which enhances the comfort,

stability and enjoyment of driving and riding.

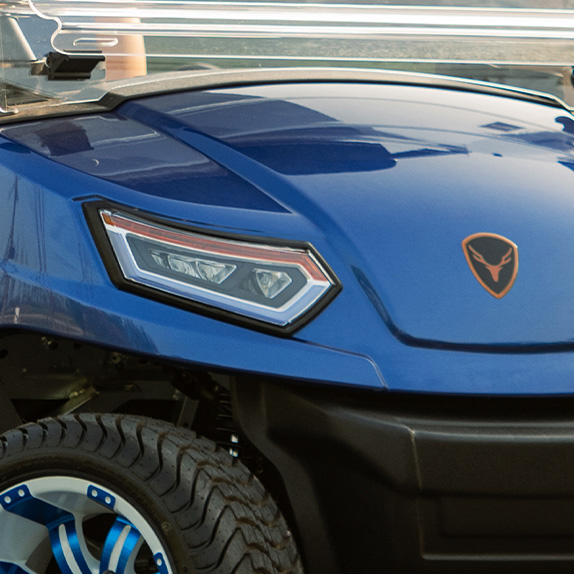

Front fascia design

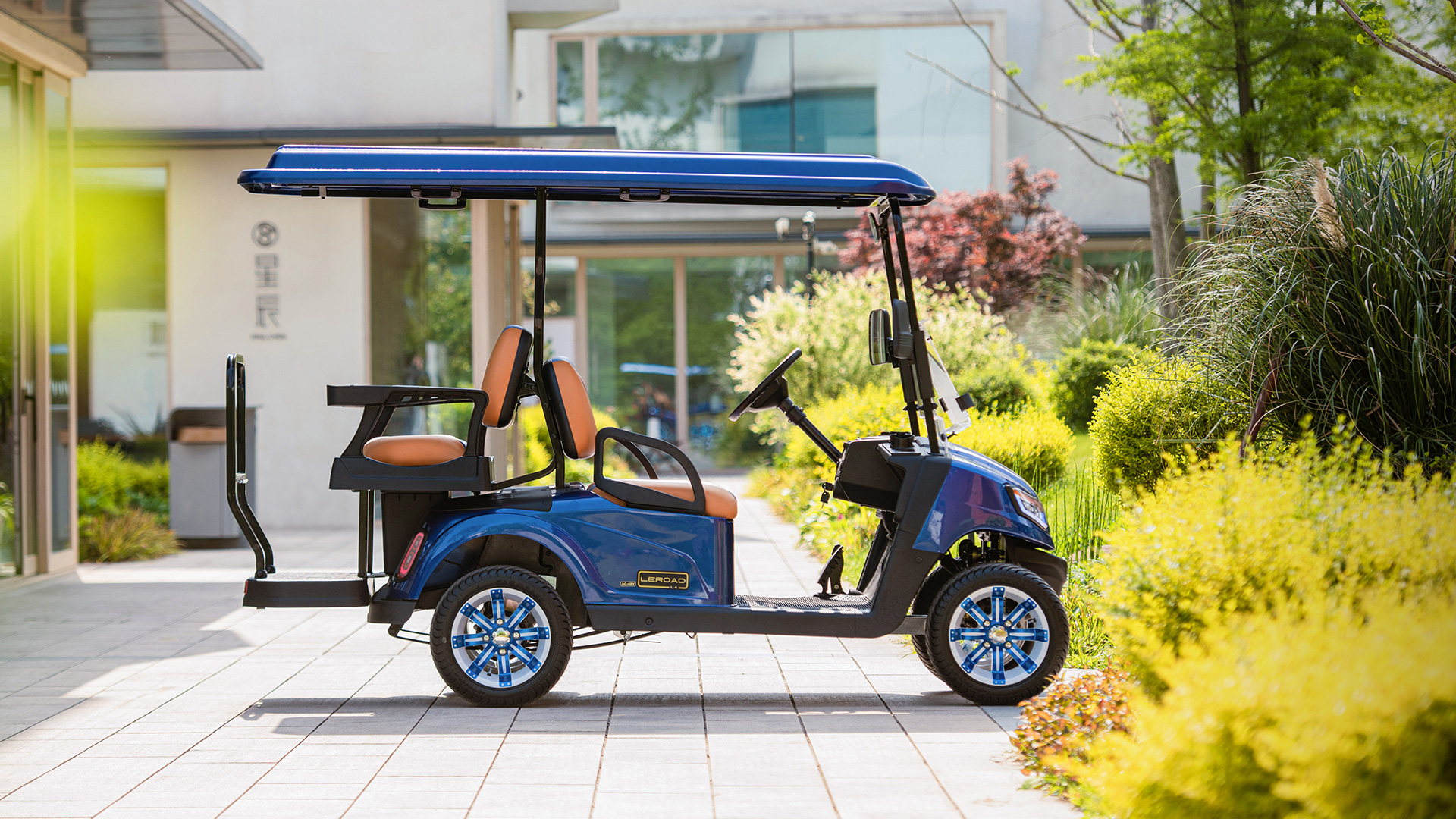

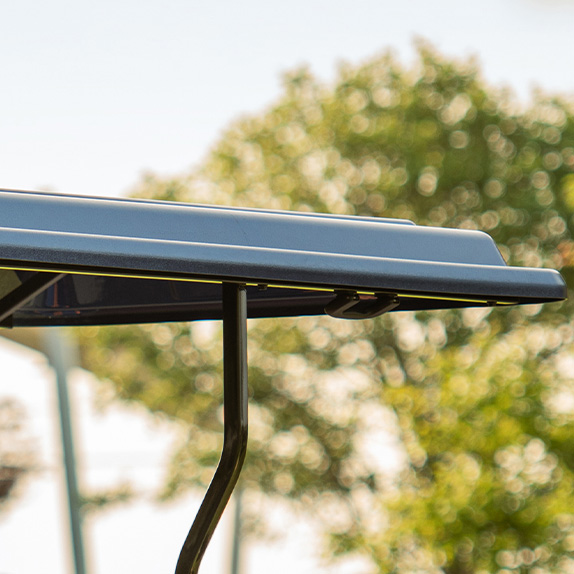

Extended Roof

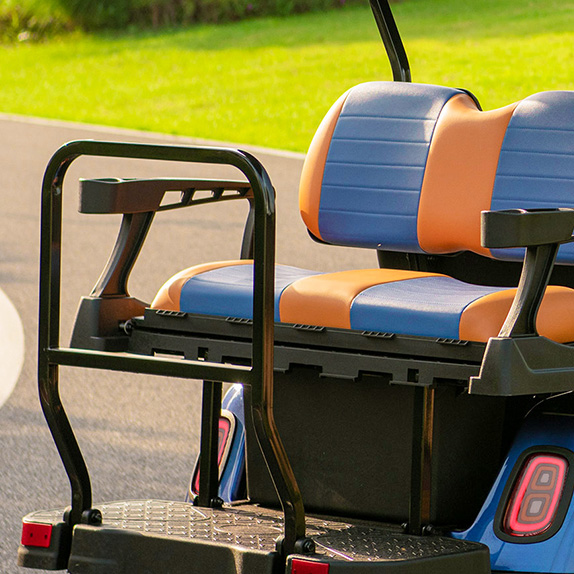

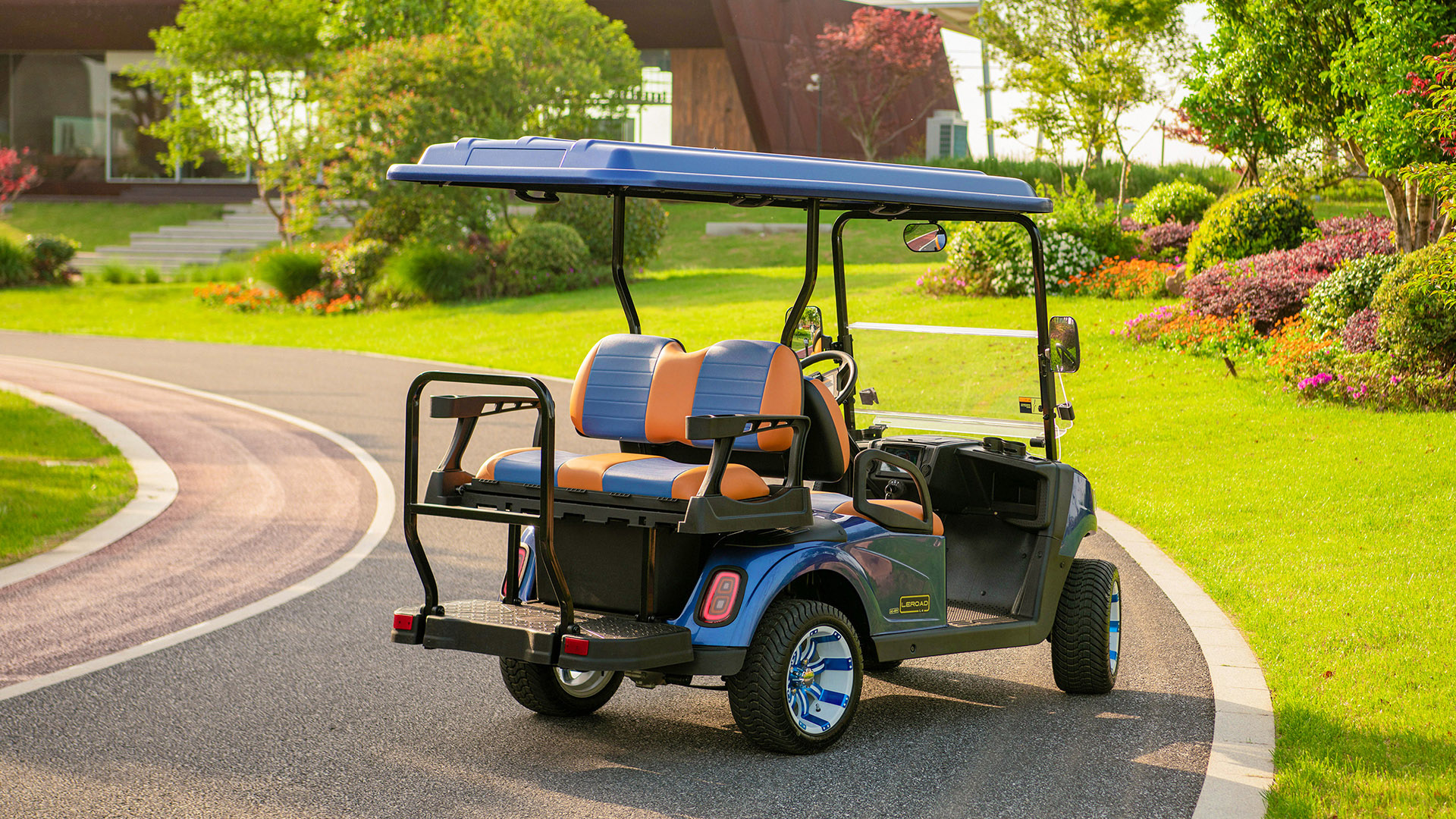

+2 Seating Design

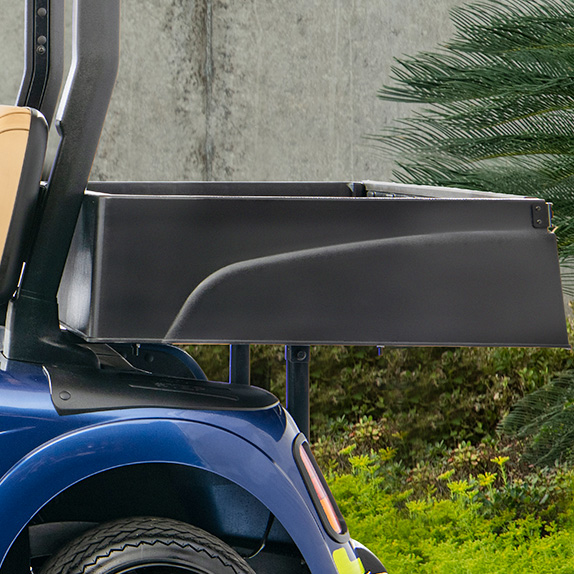

+Container

Dashboard design

The product is fitted with exceptional power system, which contributes to stable and joyful driving experience

Turning Radius

Component/Vehicle Testing

Climbing Capacity

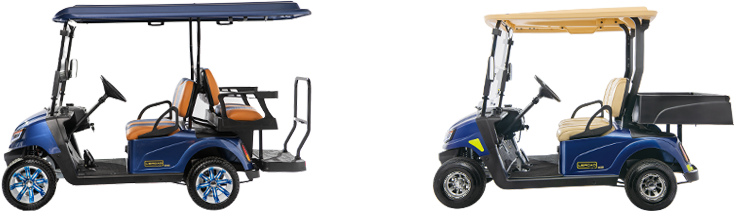

Product Parameter		L2+2	L2+Container
Load/Size	Length/Width/Height	2715-1190-1900	2635-1180-1900	mm
	Rated Load	370	320	kg
	Curb Weight(Lithium battery)	400	350	kg
	Number of passengers	4	2	People
	Minimum ground Clearance	120	120	mm
	Wheelbase	1673	1673	mm
	Front/rear axle track	880/970	880/970	mm
	Tyre	18✖8.5-8	18✖8.5-8
Powertrain	Voltage	48		v
	Motor Type	4KW/5KW		kw
	Controller	Leroad Controller		A
	Battery	6x8V deep cycle lead-acid batteries/105-160Ah lithium battery		Ah
	Charger	Leroad Charger
Performance	Max speed	8-30 (Optional)		km/h
	Range	80-100		km
	Turning Radius	2900		mm
	Steering system	Bi-directional Push Gear and Rack Steering Box
	Front suspension	Macpherson Independent Suspension
	Rear suspension	Plate Spring of Variable Cross-section and Damper
	Braking system	Rear Wheel Mechanical Brake and Service Brake System
	Braking distance	≤ 3000		mm
Vehicle Color	Standard Body Color	Black, White, Ivory, Turquoise, Wormwood Green,
		Forest Green, Sky Blue, Electric Blue,
		Golden Deer Color, Dior Red
	Standard Seat Color	Beige
